BARNS

360 Equine
Modular Stable Barns

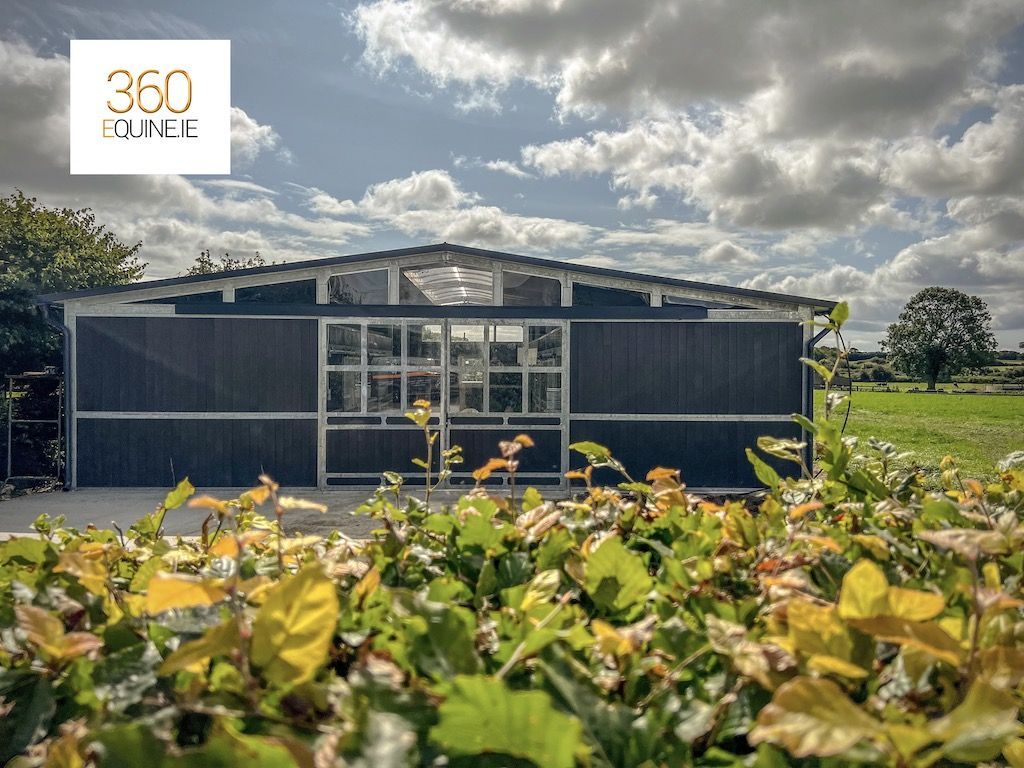

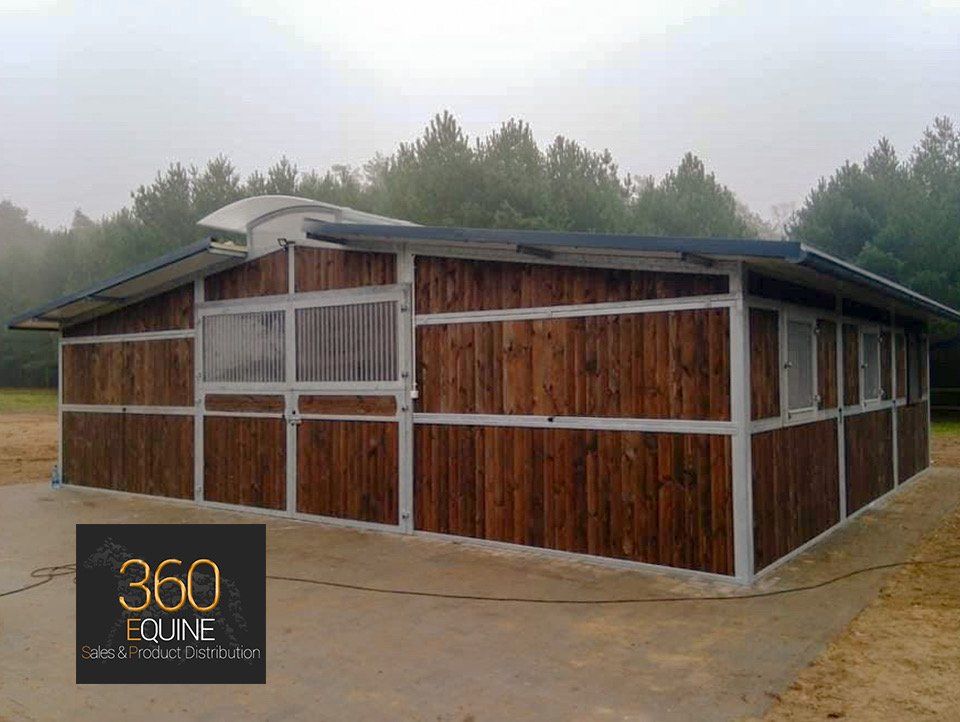

Example of customised modular unit located in Co Wexford

Available in Ireland & The U.K.
High quality range of purpose built and customized modular stable units, 2, 4, 6, 8, 12, 16, 32 Horses and more.
Insulated, Air Ventilation,
The main advantages of this type of project are: short time of building and relatively low costs.

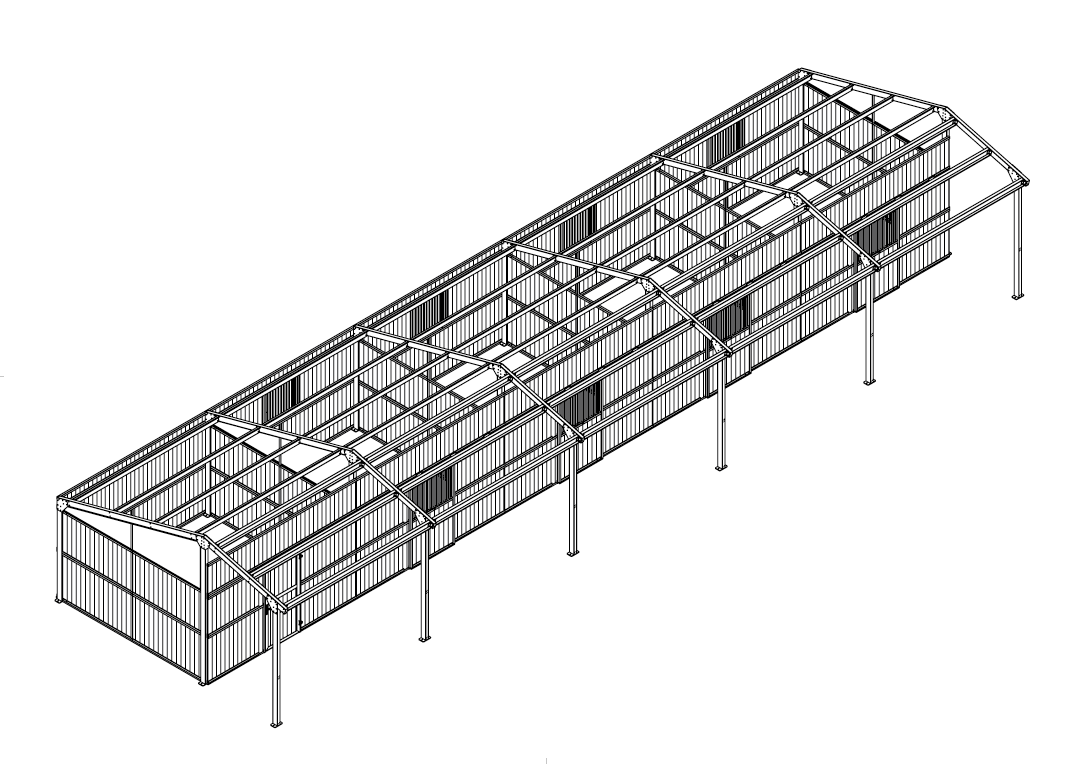

The barn is built of steel construction, galvanized.
We offer board fills in softwood, hardwood or composite 32mm tongue & grooved planks.
Insulation consists of a 60mm sandwich panel roof. Multi-wall clear panel curved  on barns for light,
along with polycarbonate or laminate glass options above panels in gables.

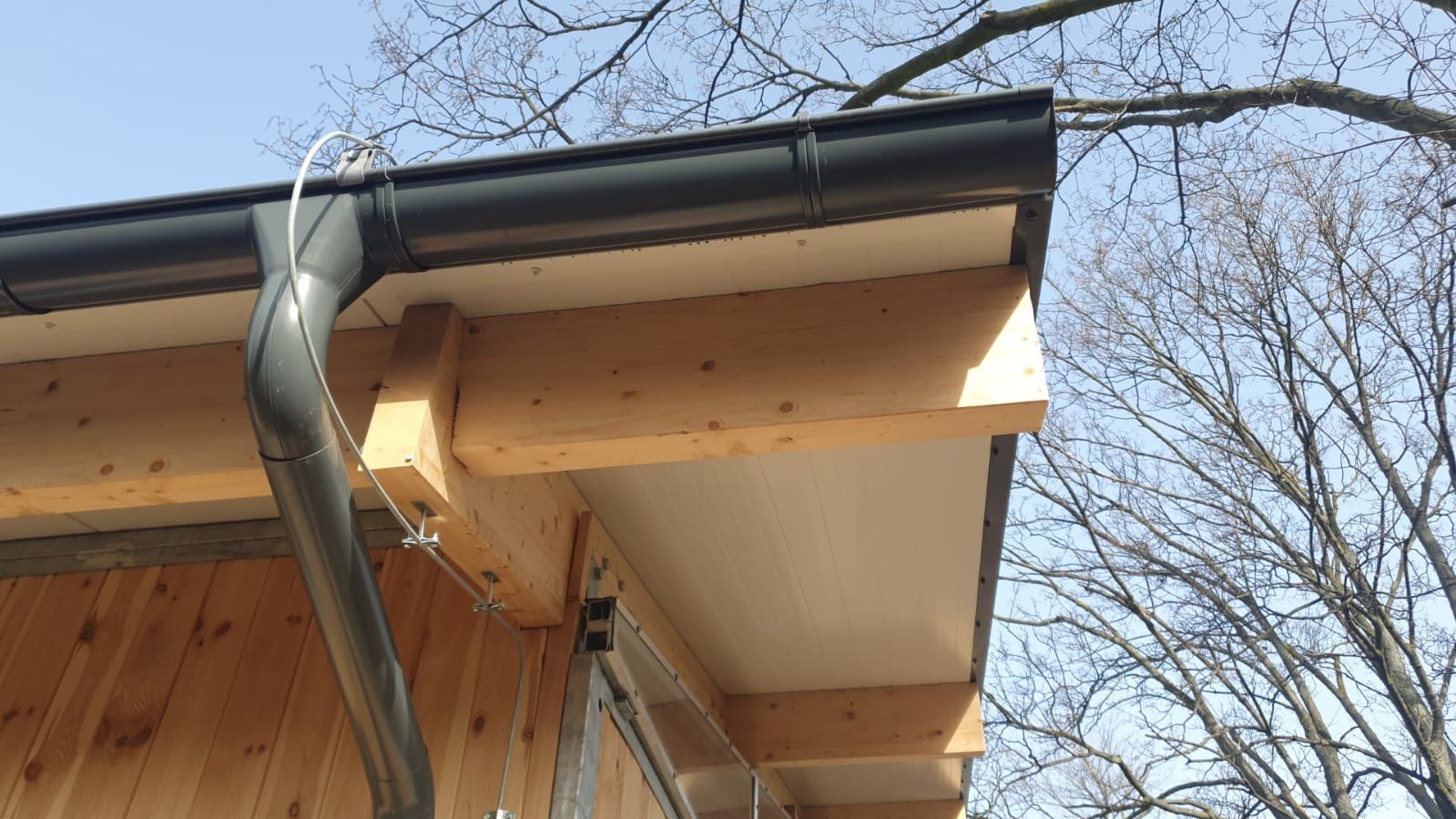

Zinc guttering and downpipes with flashing to match. Ral Colour choice.
Best of all is, we can design and incorporate functionality to your needs.

Manufacture and delivery time vary depending on size and requirements.
Generally allow 12-16 weeks from payment to delivery
You may require planning permission.
See the brochure here

Quality

 These stable units are exceptionally well made using quality materials and skill. You'll be very hard pressed to find such a durable recycled composite board. Interior flexibility and functionality such as sliding partitions and open out fronts for easy clean out.
Galvanised steel pillars, channel, purlins, trussing.

Value

Compared to most suppliers in the market 360Equine can truly offer exceptional value per unit, particularly in the prestigious line.
Depending on the quantities you may be pleasantly surprised to find a difference of between ten and twenty percent.
  1. Week 1
  2. Week 2
  3. Week 2
  4. Week 3
  5. Week 10
  6. Week 11
  1. Meet to discuss
    Size, functionality, your requirements

    Initial discussions on the requirements, size, functionality, materials and installation

  2. Finalise floor plan and units
    Specifications

    Finalise and agree on your floor plan, interior stable designs and functionality.

  3. Pre-production Payment
    Downpayment to start production

    A minimum of 50% payment is required to begin the manufacturing process of your building

  4. Start production
    Full drawings of all elections and interior

    At this point the technicians will produce the final drawings and specs and the fabrication process begins at the factory

  5. Completion
    Balance of Payment

    When the unit is complete and ready for transport the balance of payment and delivery payment is required to release your unit for transport

  6. Delivery
    Transport to site

    Transportation to site, you will need a teleporter and operator on site to remove from truck. You will received notice of expected delivery day and arrival time to within a two hour window.

Stylish.

Functional.

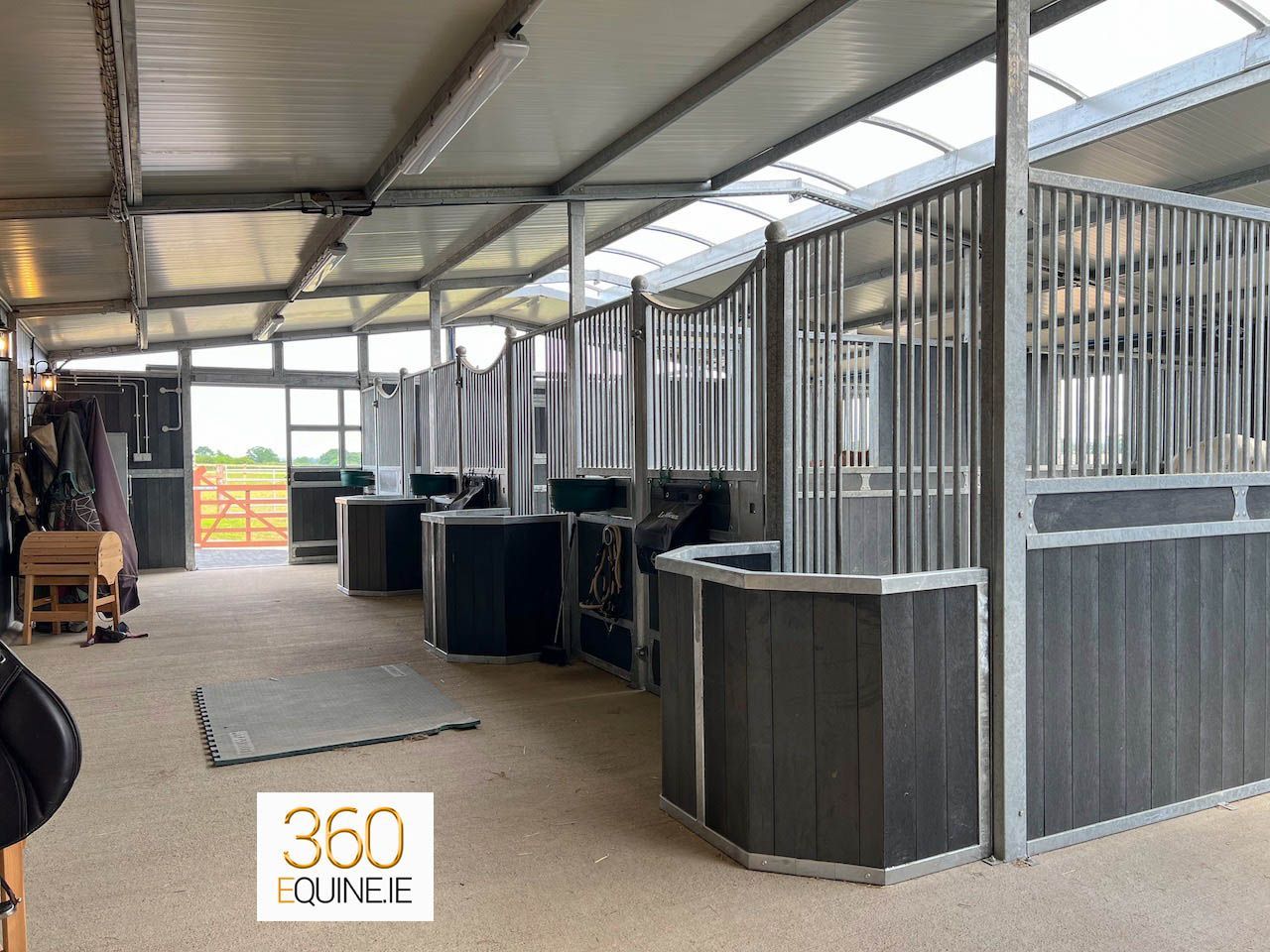

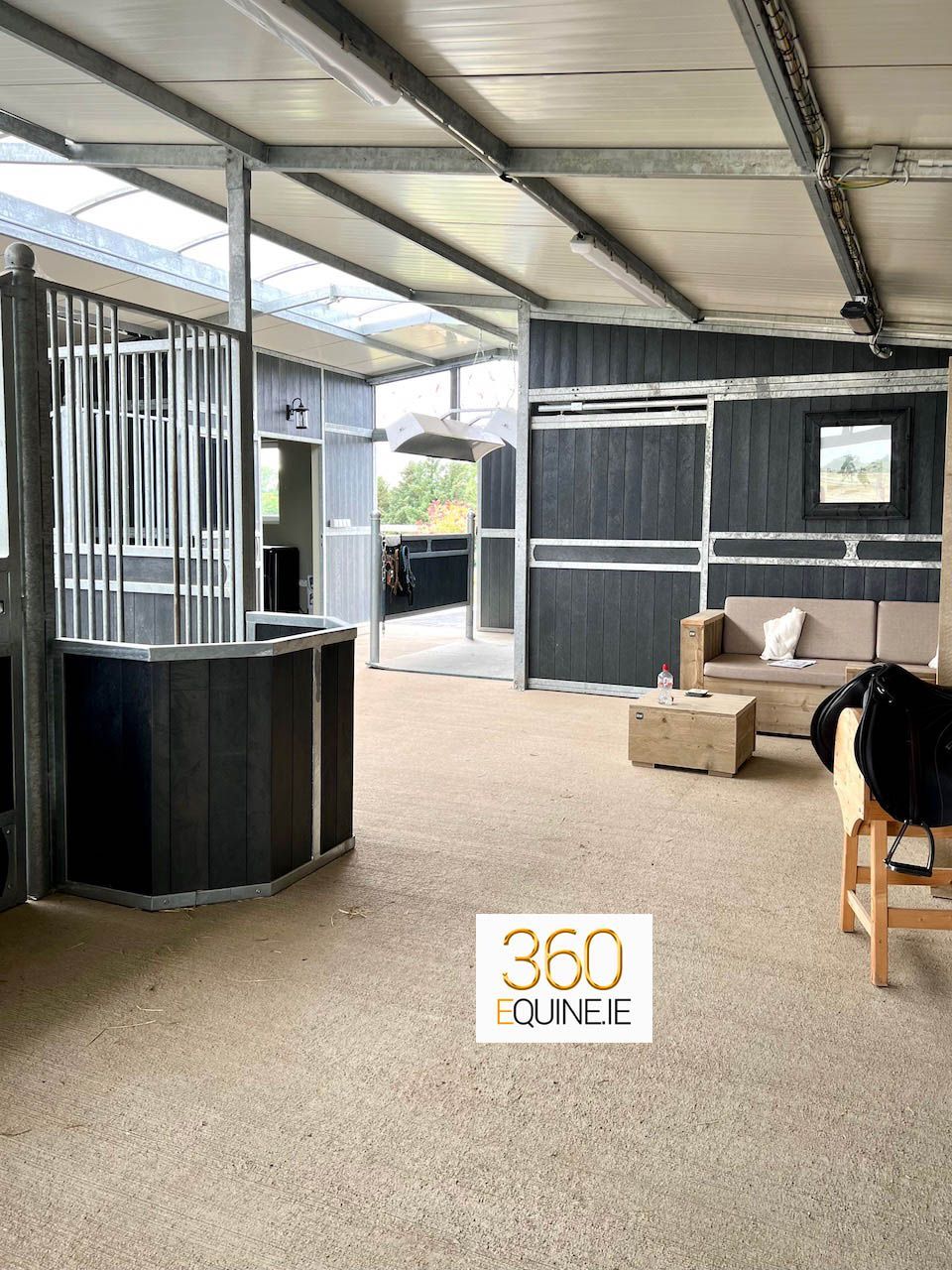

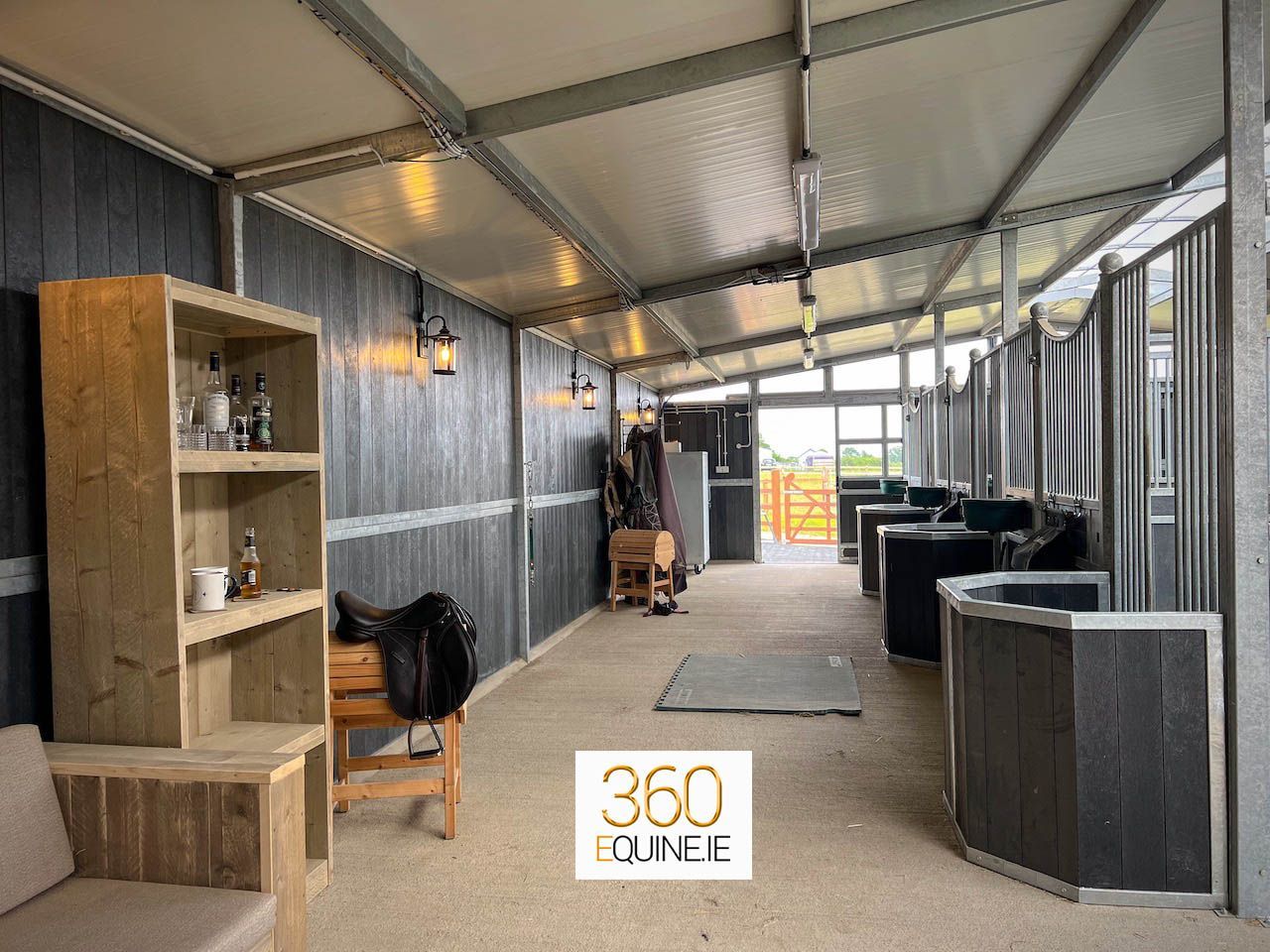

360 can customise your interior based on your needs with practical functionality.

Tack room, wash room, veterinary stocks,

slide out partitions, easy clean out, fully openable facades & more.



Types

A Frame, Back to Back or Single line.
Various layouts and customised.

Roofing

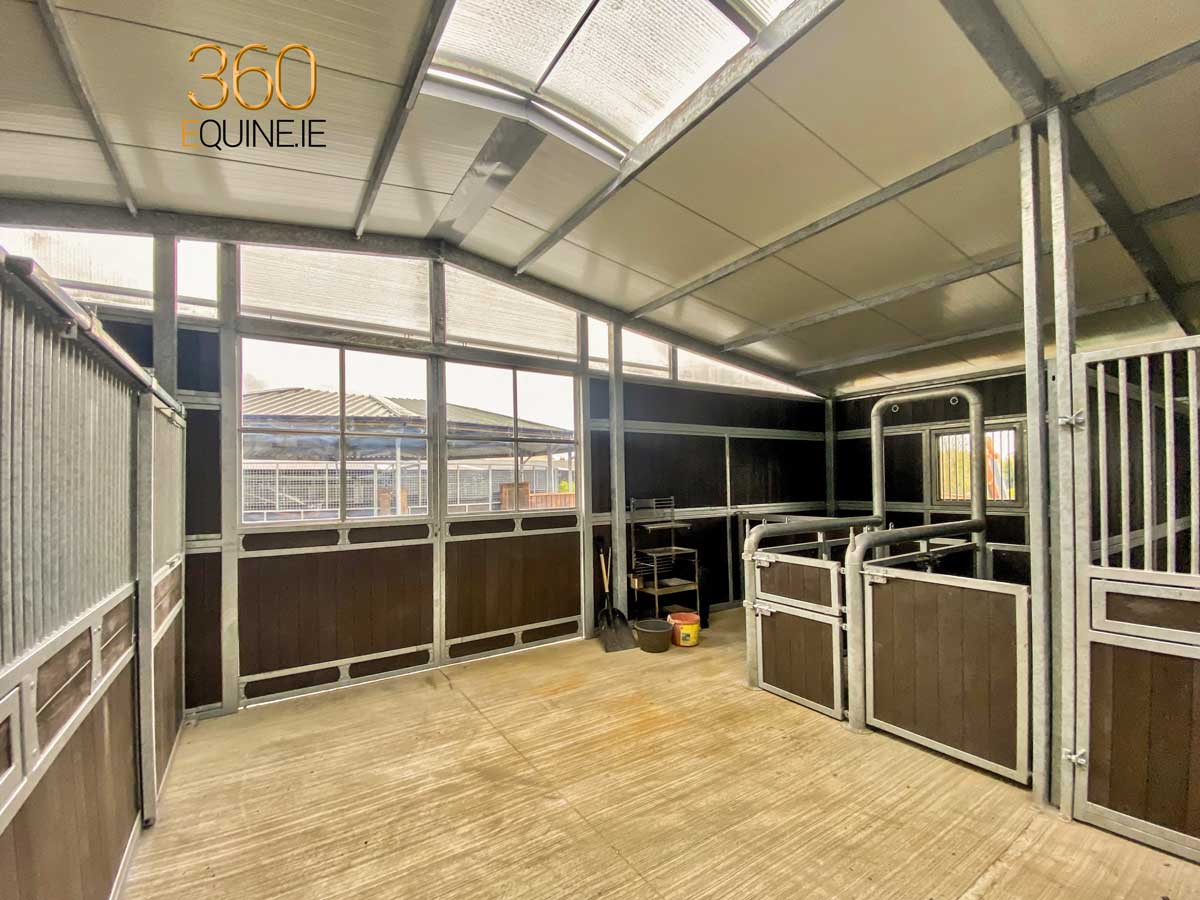

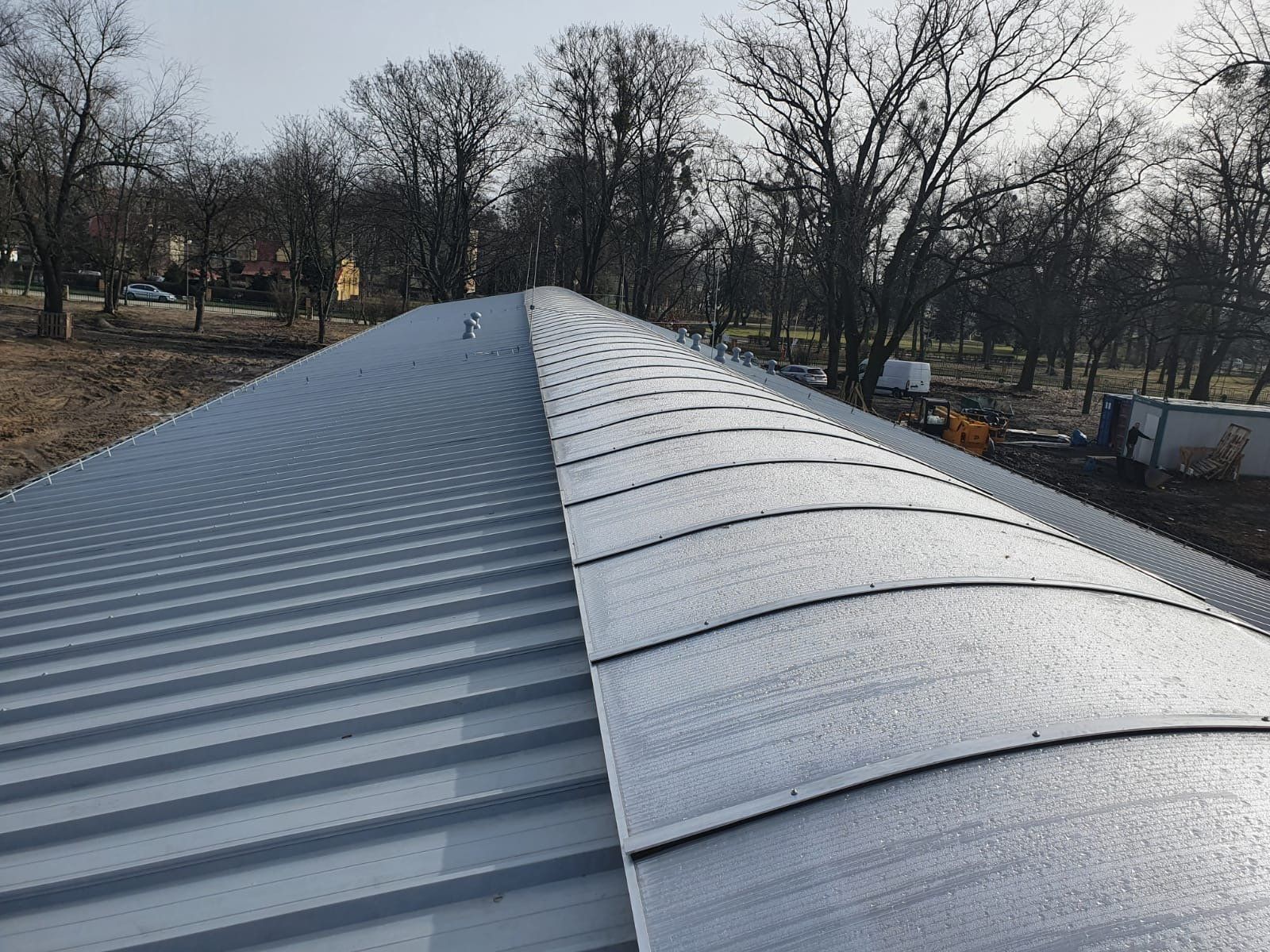

Curved Skylight raised. 18mm multi wall Clear sheets, 60mm Insulated sheeting, ventilation, Flashing and zinc guttering & downpipes

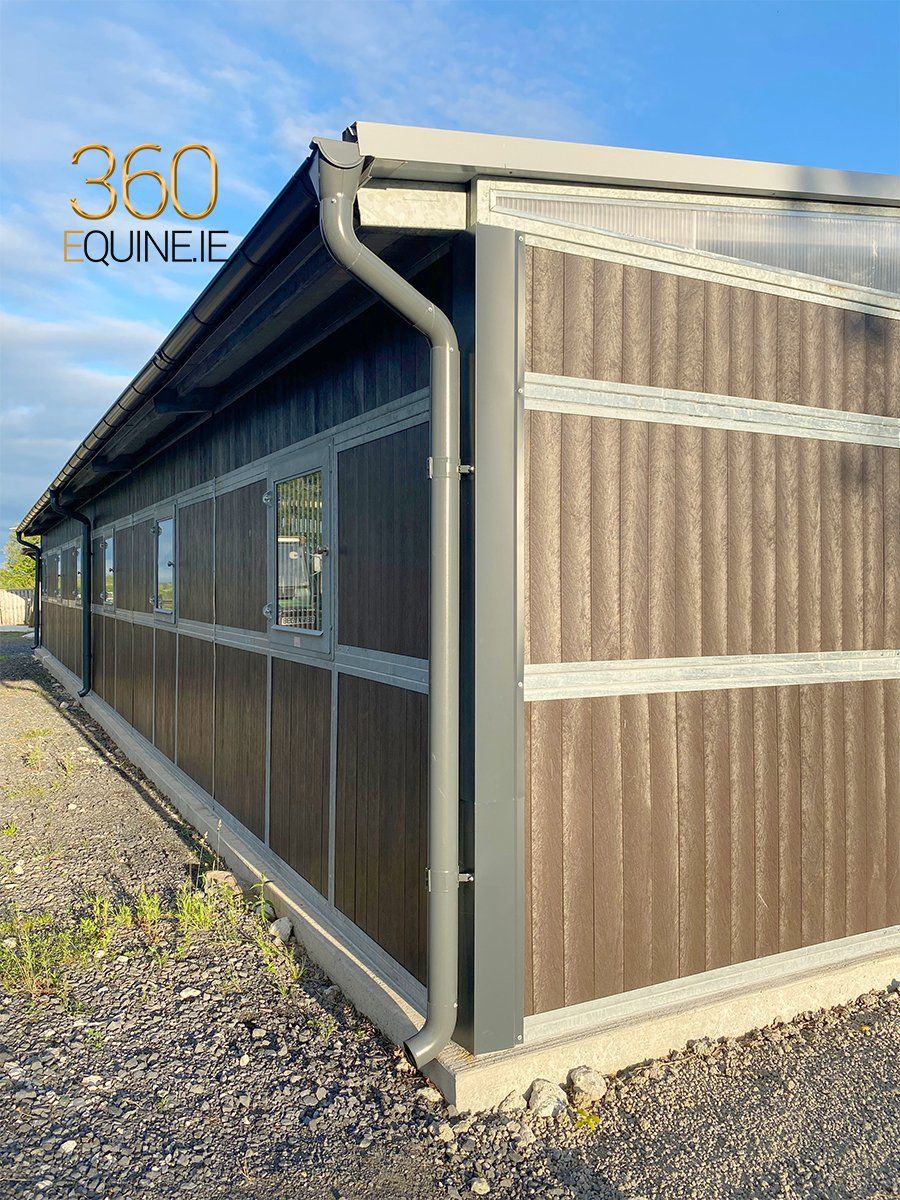

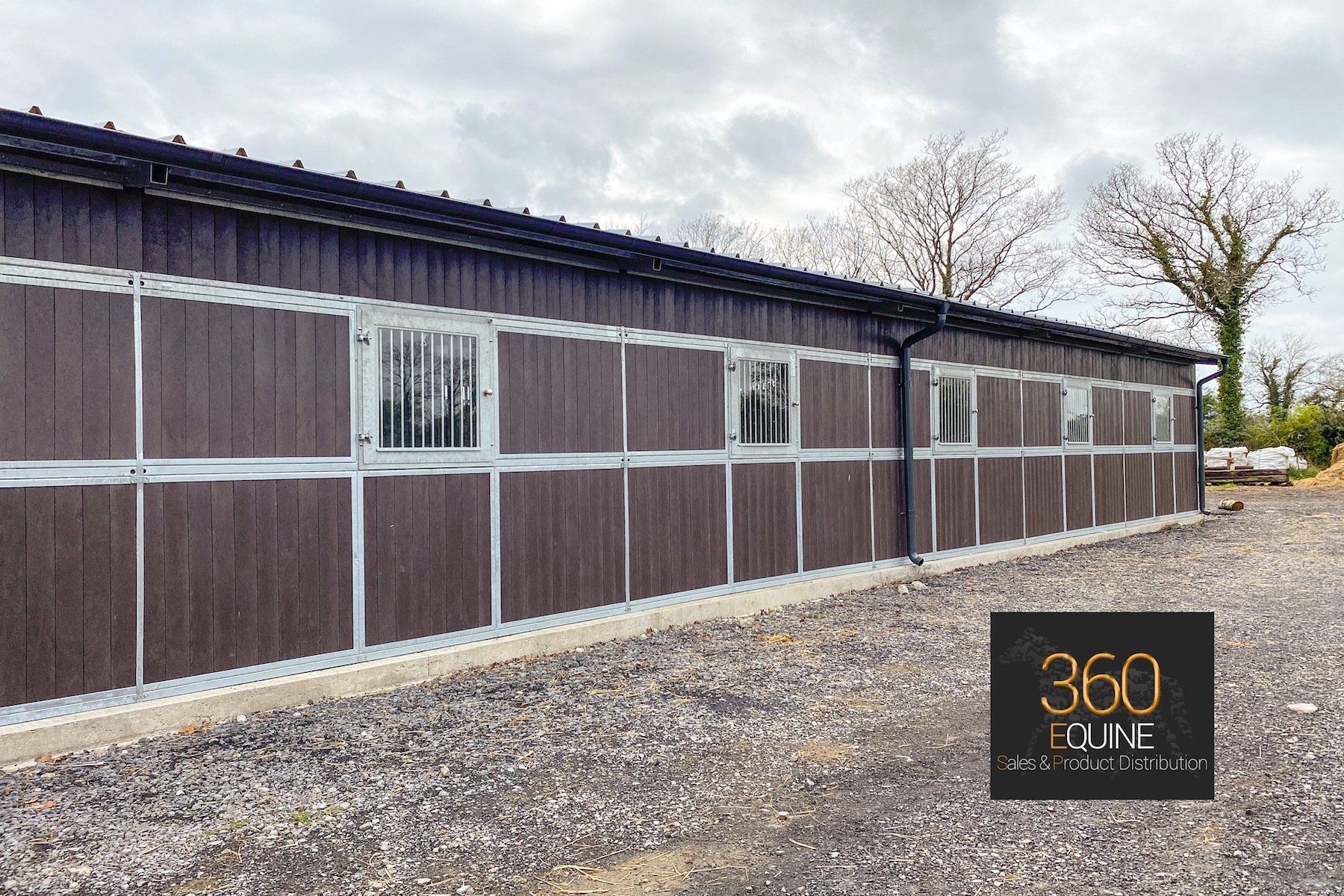

Walls & Pillars

Galvanised box of various sizes
with 32mm T&G Composite boards,
Hardwood option also. Option for Windows with grille and safety glass 1m/2

Sizes

2 stable unit up to 20 stables or more
10ft to 14ft stables
2.4m or 3m to eaves

Corridor

3m, 3.5m or 4m corridors

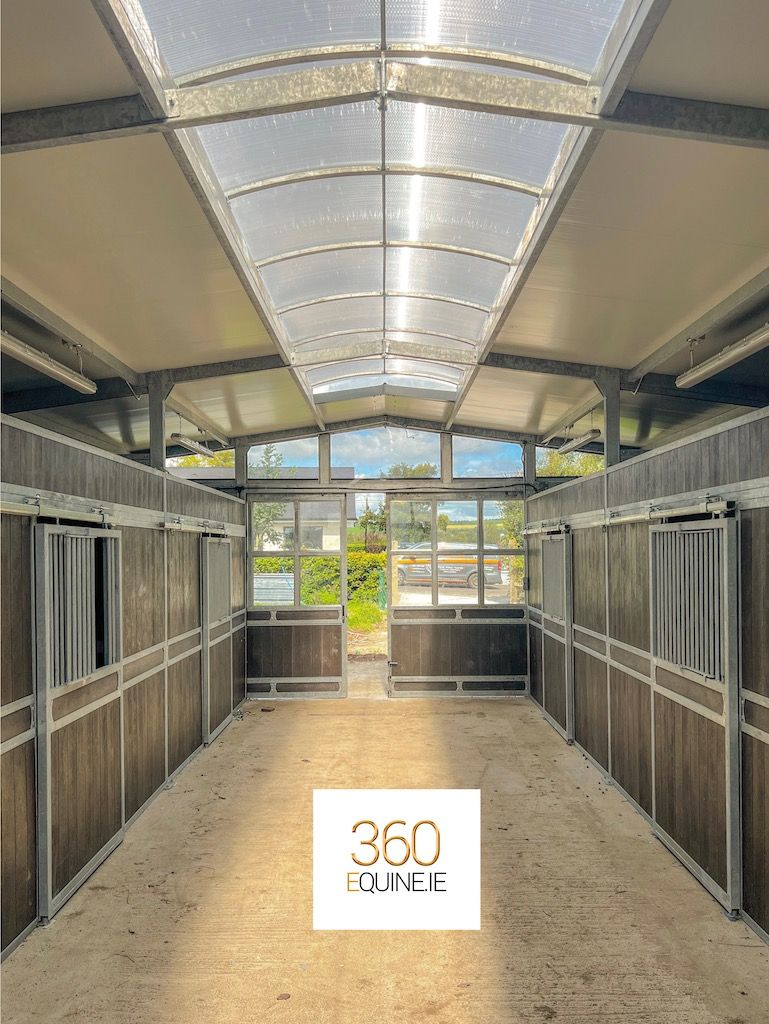

With raised skylight adding ventilation

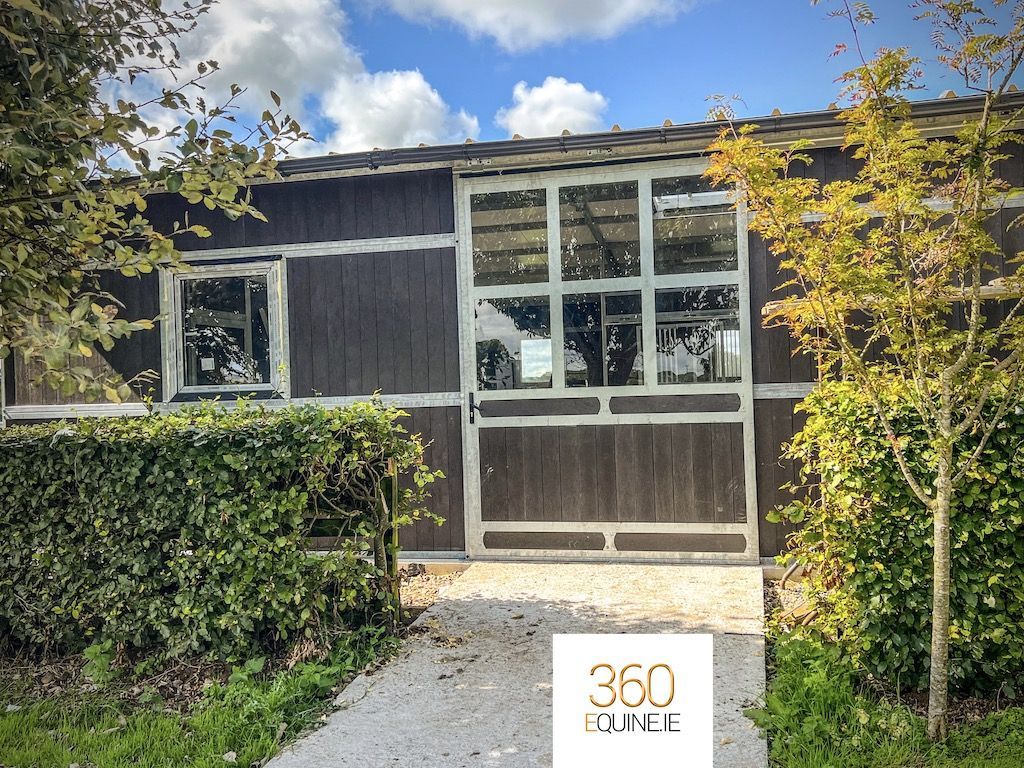

Gates

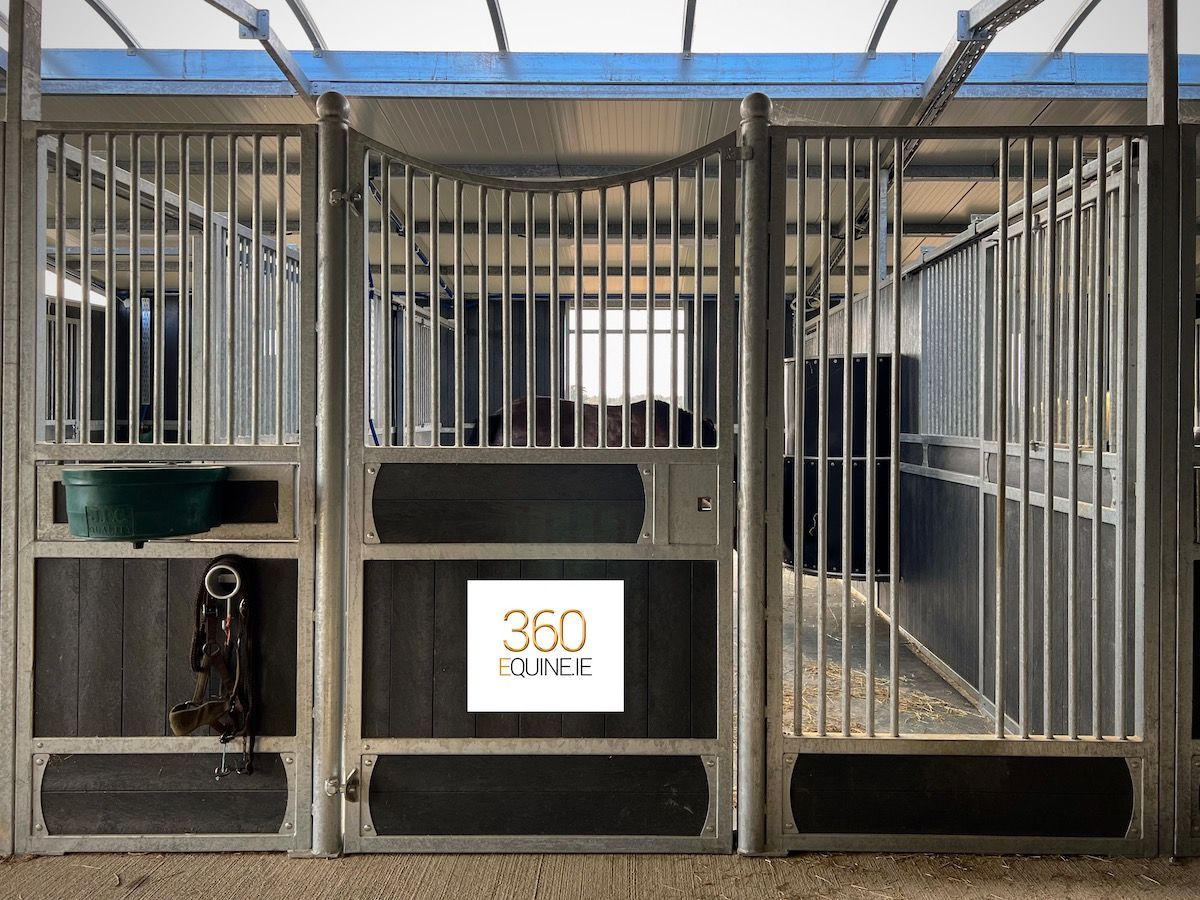

Large hinged or sliding gates galvanised, powder coated, hardwood, composite, or part safetyglass/plexiglass, lockable

Barn
Gates -Sliding

Height: 2m, 2,5m, 3m
Lenght: 2m, 2,5m, 3m
Hot dipped galvanised finish

Barn Gates
Plexi Glass

Height: 2m, 2,5m, 3m
Lenght: 2m, 2,5m, 3m
Galvanised finish, choice of infill

Barn Gates
Prestigious

Height: 2m, 2,5m, 3m
Lenght: 2m, 2,5m, 3m
Powder coated, Choice of infill,
Examples of Layouts

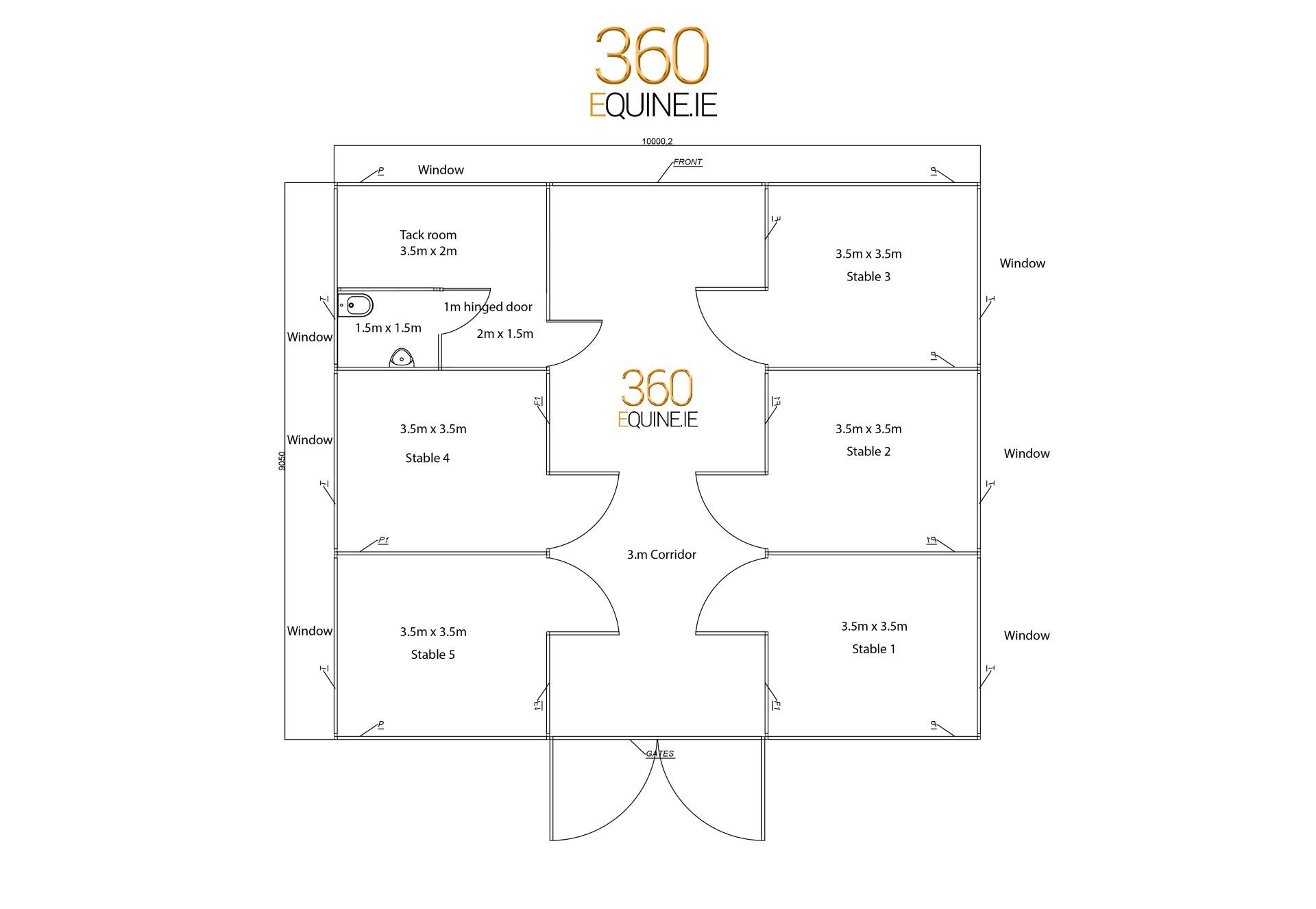

5 Stable Unit with Tackroom & Toilet

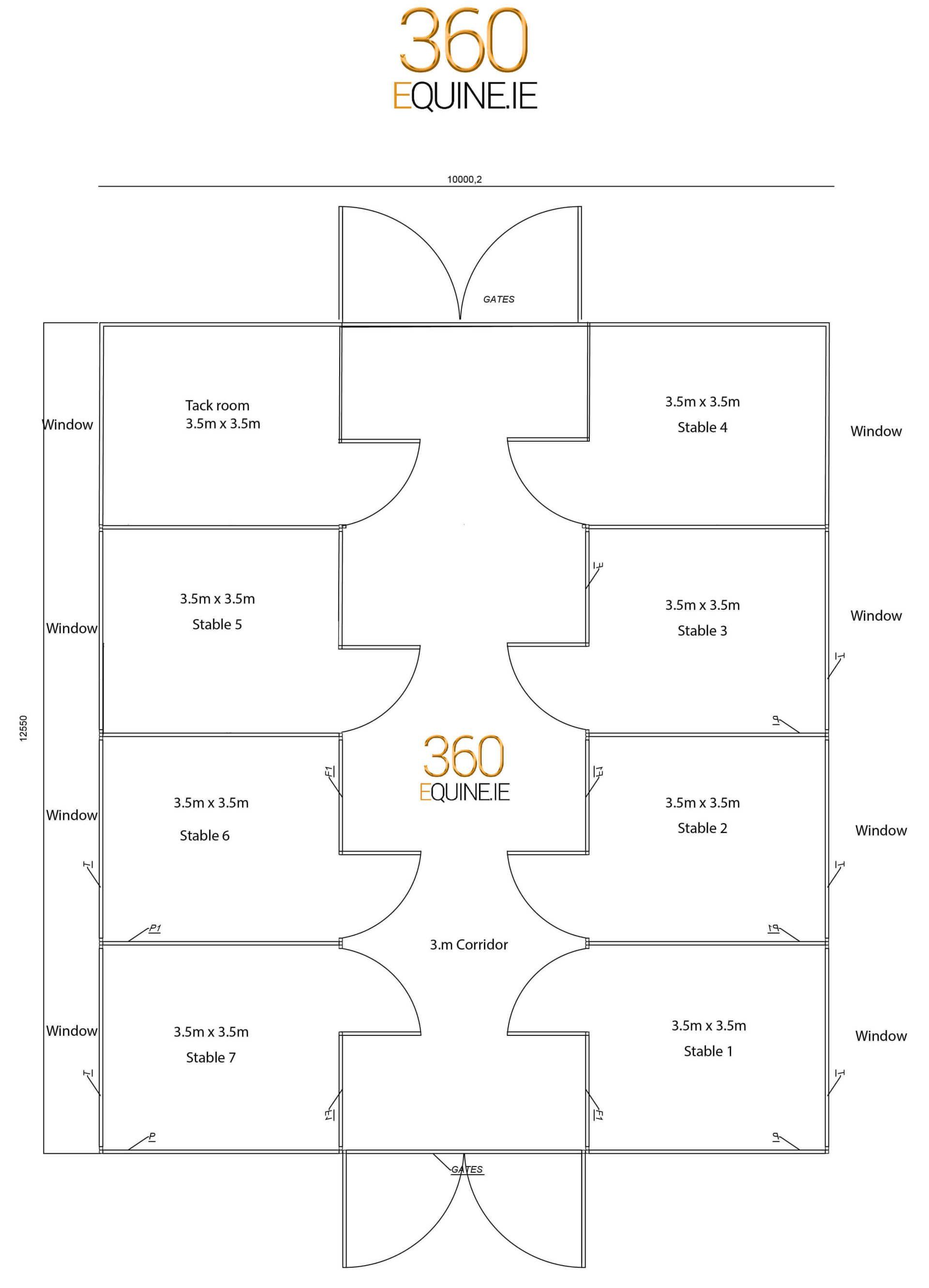

8 Horse Unit with Corridor

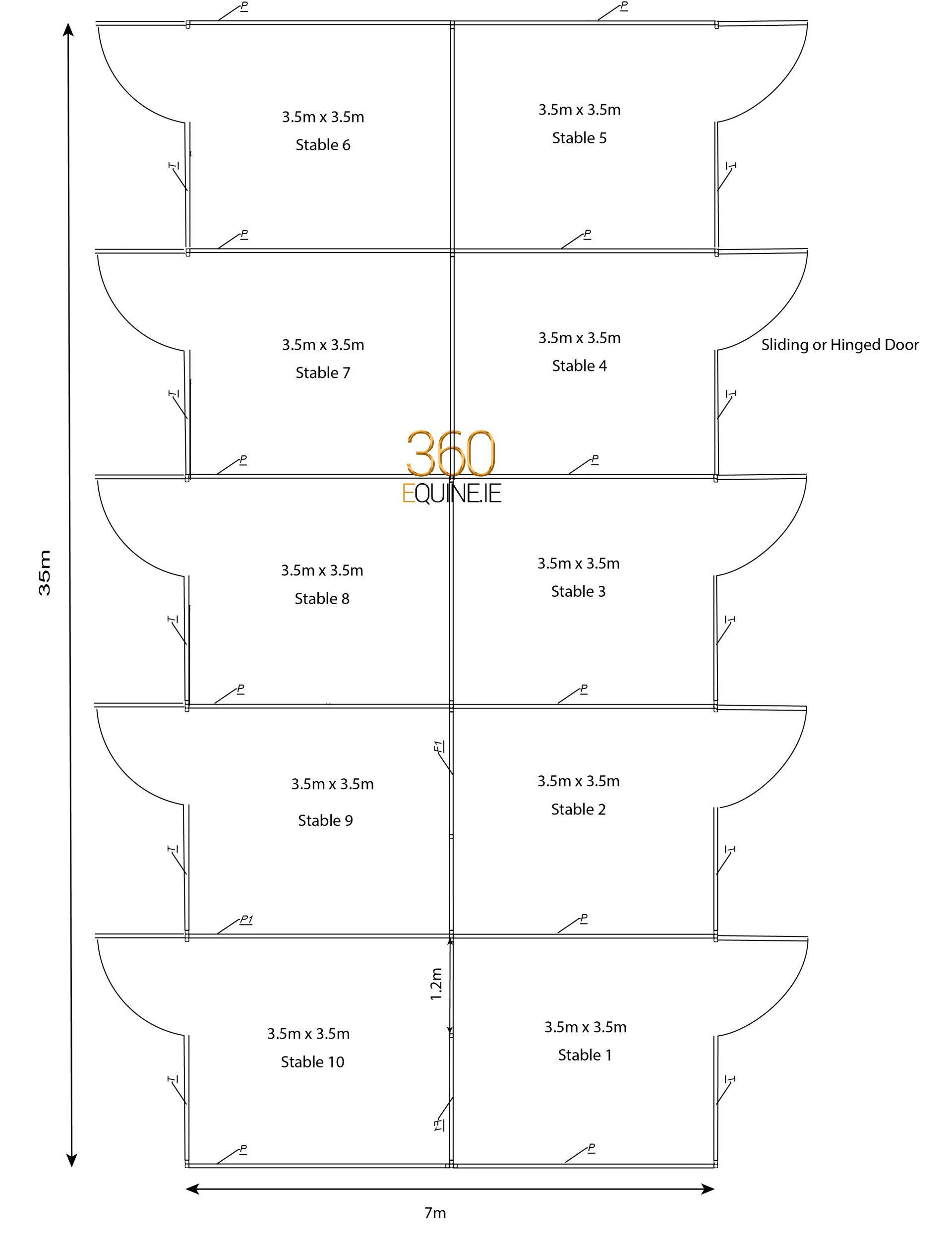

10 Horse back to back

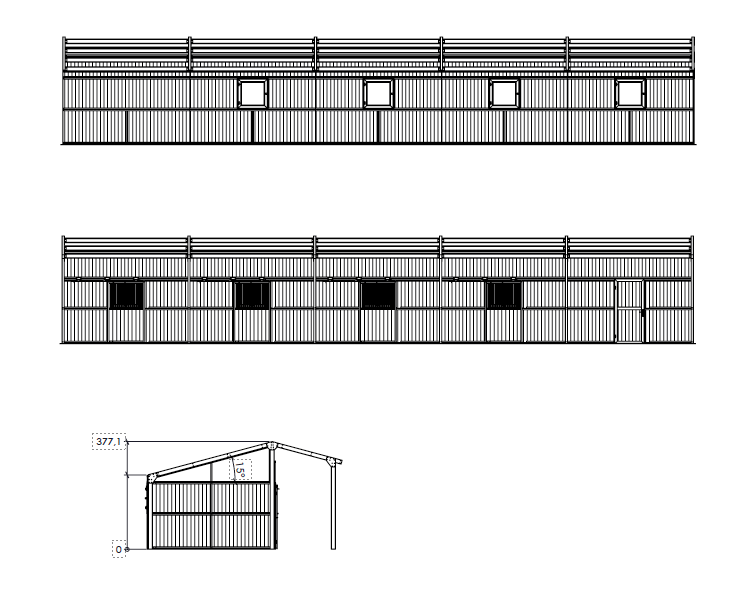

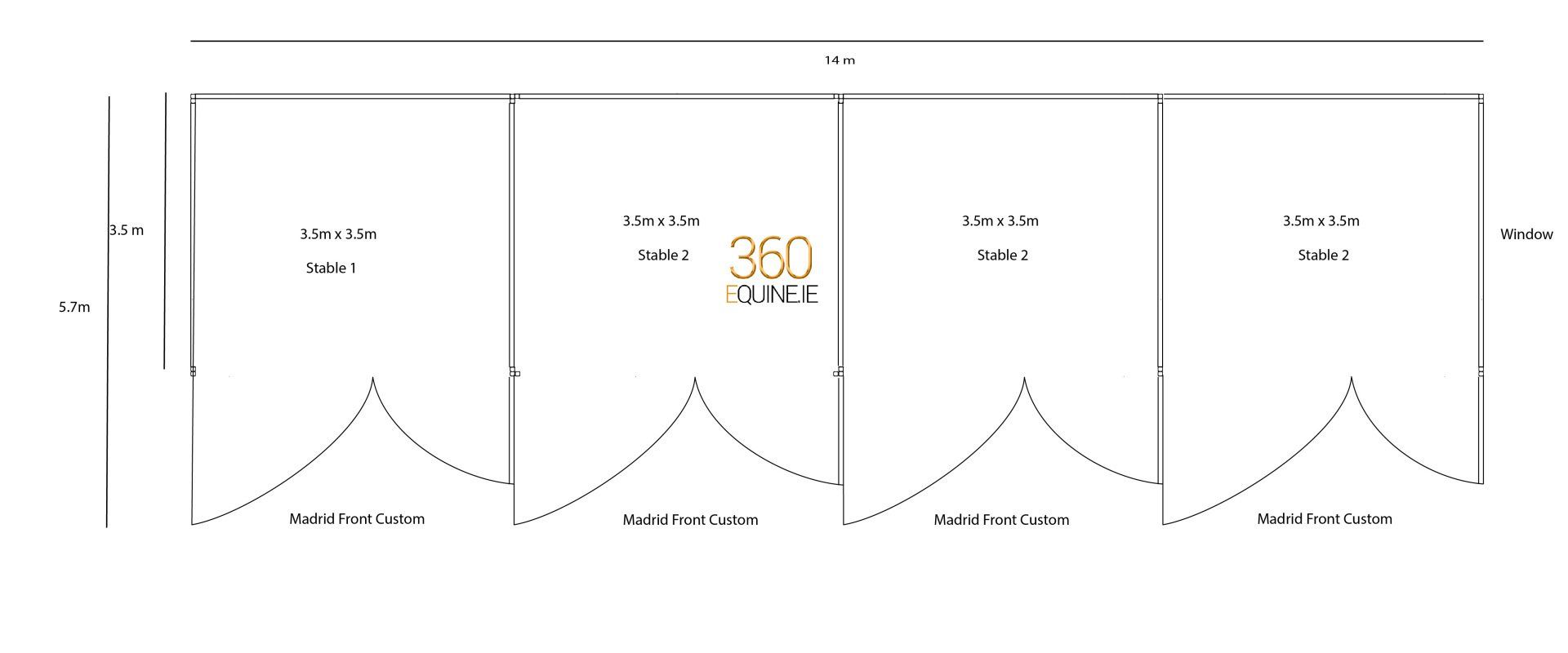

4 Horse Unit Linear with Overhang

Special Offer

A quality compact unit for two horses. Great as an isolation unit or two mares and foals block.
Standard x 2 Stable unit with corridor
With standard wood infills, all galvanised steel, 2 x large hinged gates.
2 x stable fronts with sliding doors and 2 x windows with plexiglass and grille/anti-weaver.
Option to upgrade the infill to composite boards or Hardwood.
Includes roof Insulation and ventilation.
Option to use your own local team to install.
€11,350 ex vat & transport
Upgrade:
€12,850 ex vat & transport (includes 32mm composite boards)
  • What's the dimensions used for these?

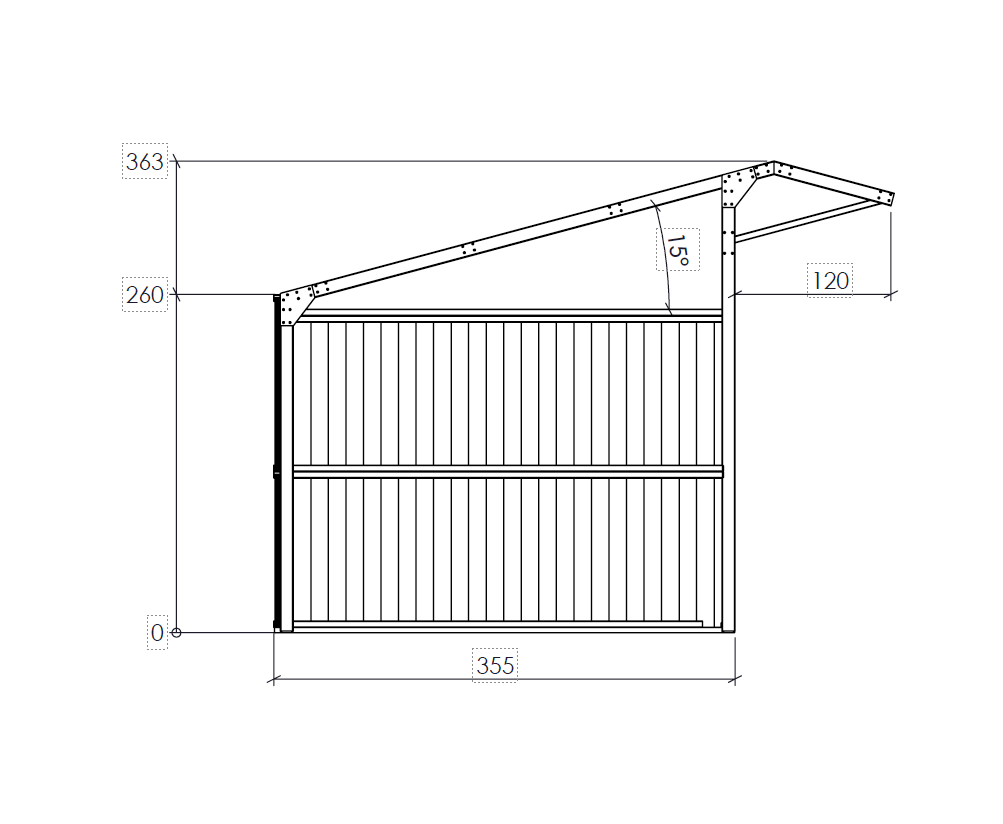

    The standard stable size is 3.5m x 3.5m with 2.2m high partitions. The wall panels are generally 2.4m high to eves with apex 3m -3.5m. Larger units of 10 horses plus may be higher depending on ventilation requirements.

  • What about light and ventilation?

    For barn A frame types we use a curved plexi clear panel down the centre letting in light. This also extends over the roof apex and allows for air flow. You can also add windows to each box. Additional air intake just under the eves and protected from rain.

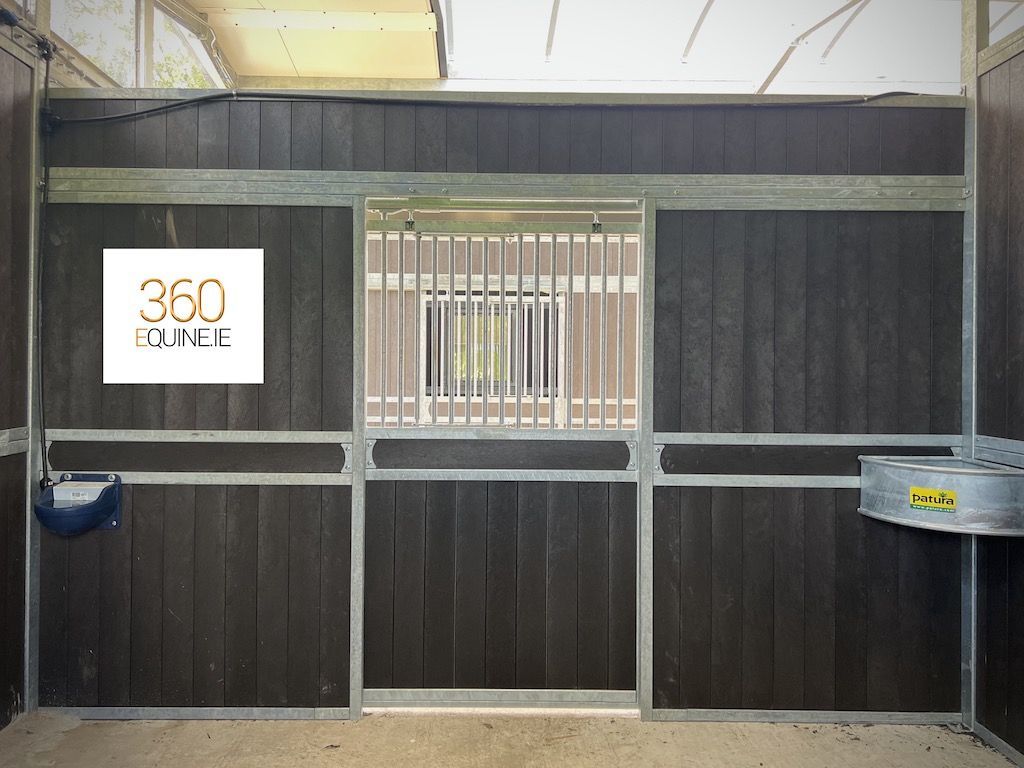

  • What sizes do you produce full fronts and partitions?

    Standard are 3m, 3.5m & 4m. However we do produce to customised sizes. Heights vary from 2m, 2.25m to 2.4m. Doors are generally 1.2m wide.

  • Whats the frame made of?

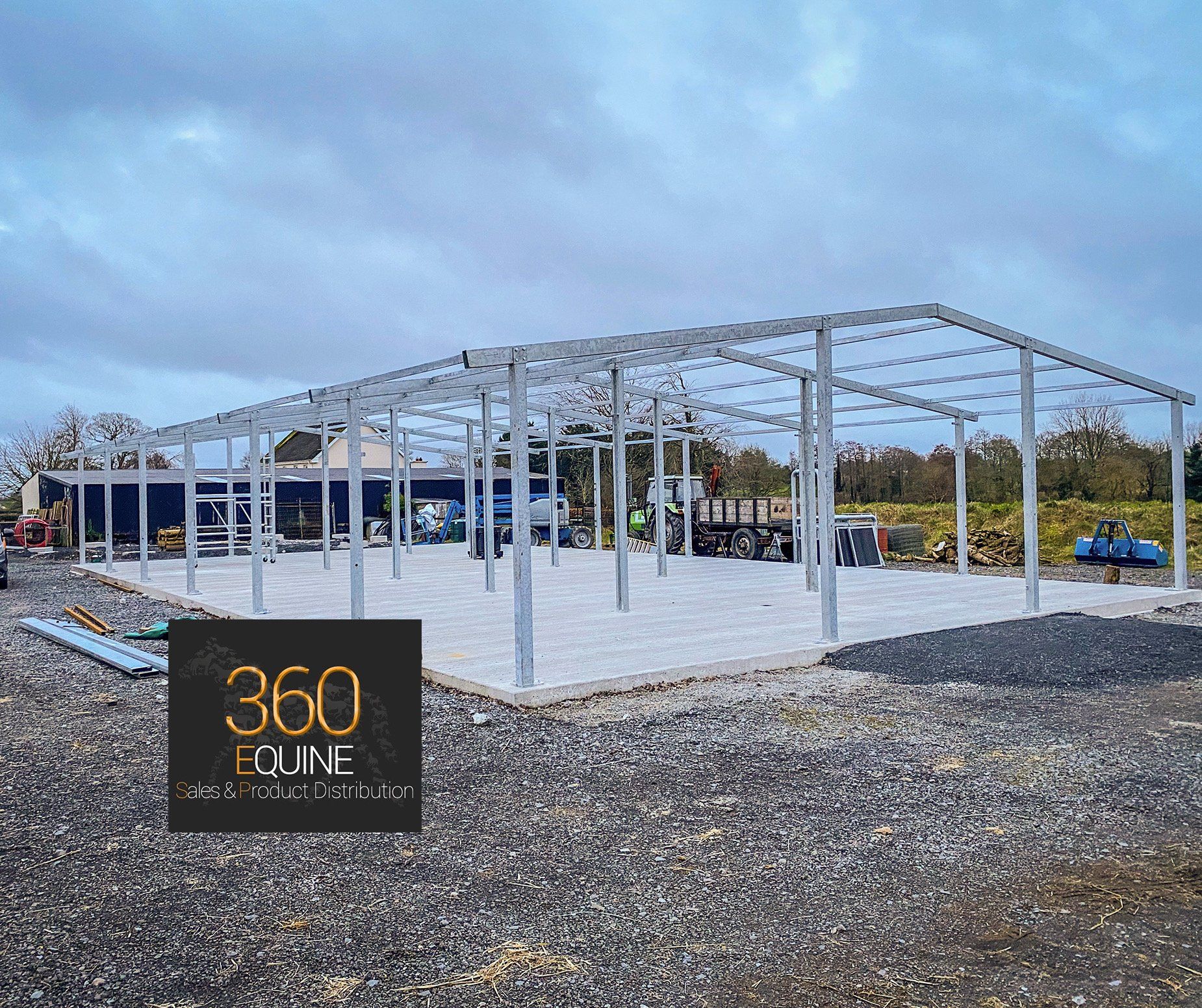

    Pillars and trussing from 100mm to 150mm box. 50mm box steel elsewhere . Hot dipped galvanised. Bolts to the concrete and connects internally.

  • What types of fill are available?

    Standard pine, hardwood, bamboo and recycled composite plastic. The plastic infill is available in black, dark brown and grey. All infill is 32mm infill.

  • How many colours in powder coating?

    3. Black, Grey & Green, but we can consider rquests from the RAL chart

  • What about installation?

    You can use a local builder with a 360Equine representative or 360Equine can provide the team to install. You may need some lifting equipment hire such as a teleporter, boom lift or scissors lift.

  • How many workers are needed to assemble?

    Generally a 2-3 person team...depending on size of unit. Discuss with builder. 360 will be more than happy to meet with your builder to discuss the installation.

    Tips:

    Quality tools will assit the unit going up faster.

    Make sure to secure your team well in advance of delivery and start of project.

  • What about the floor?

    We do not provide the base. We recomend a 35Nm concrete slab with drainage. Slab should be minimum 150mm, but your local provider can advise here.

  • Is there minimum order requirements?

    Basically you can start from two stables up.

  • Do these come with lighting and water troughs?

    No. These are items that you can source locally  and have fitted easily.

  • How long does it take before I receive my order?

    Depending on size allow 6 to 12 weeks from payment to delivery.

  • Do I need a forklift?

    You will need a forklift or a front loader to remove from truck  and it will need to have a telescopic reach. If hiring you will have various notice periods of delivery to prepare. You will also need a forklift and possiblly a platform riser for some of the stages of installation.

  • What is your return policy?

    Unfortunately, once these units go into production there is no returning as they are made to order, so make sure you have double checked all aspects of your order with us. You can be assured that we will do everything we possible can to make your order to your satisfaction.

  • Do you finance this item?

    We do not offer finance on modular units.

Talk to us today about barns!
