The Brief

The brief was to come up with an internal layout with effective functionality for mainly thoroughbreds ranging from mostly yearlings to 3yr olds. Mares and foals could also be accommodated.
Functional design and custom sizes were key to achieving beyond the clients expectations.

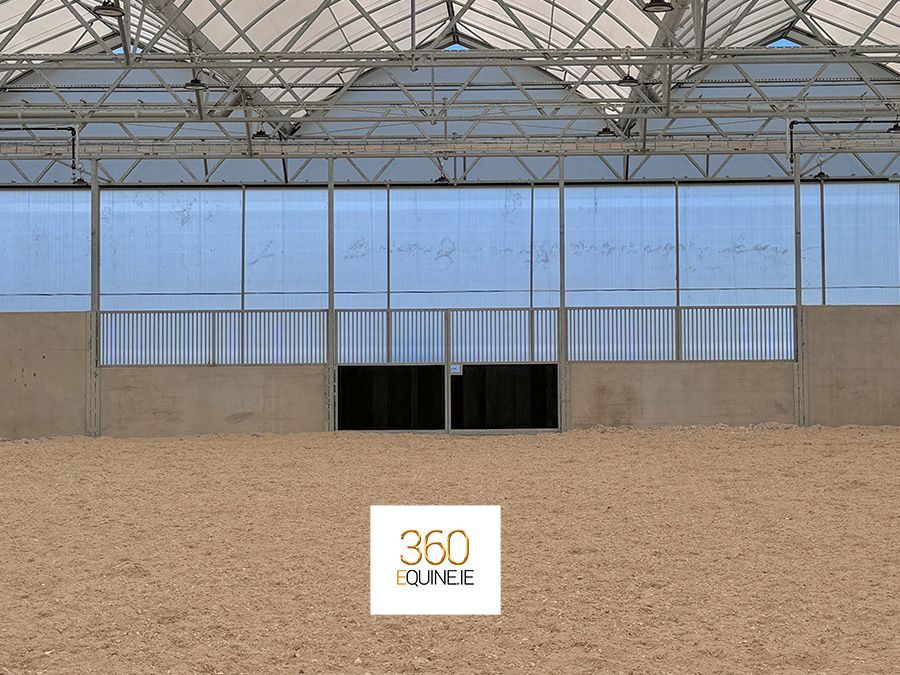

All stables include a dropped floor to accommodate deep bedding which would require easy clean out functionality. Other aspects included walker, arena, vet room, tack room, wash bays, winter feeding pens with access to paddocks and galvanised 3 rail paddock fencing.

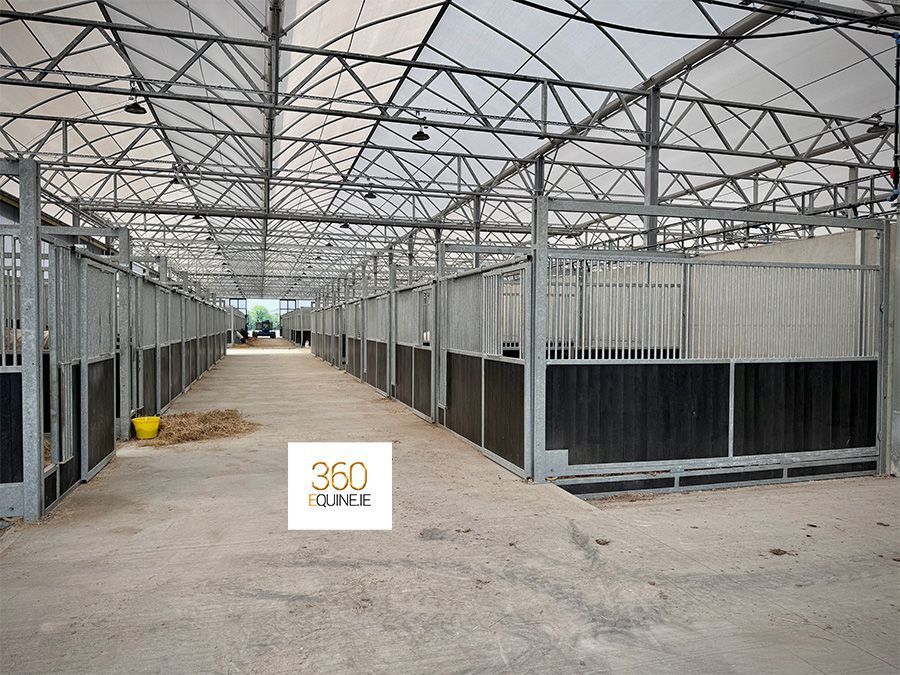

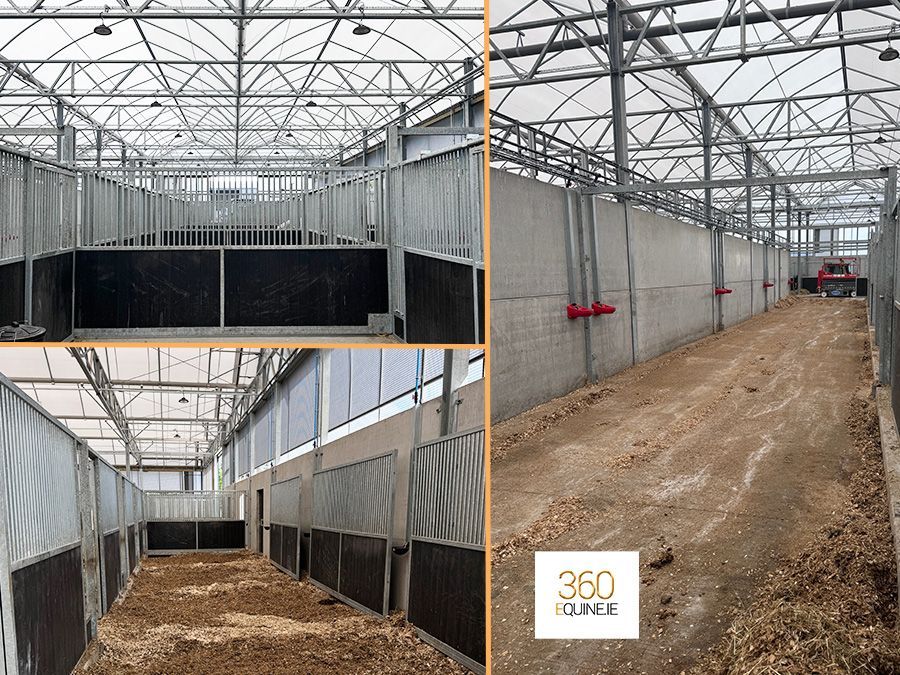

Easy Clean Out

All units have easy clean out access

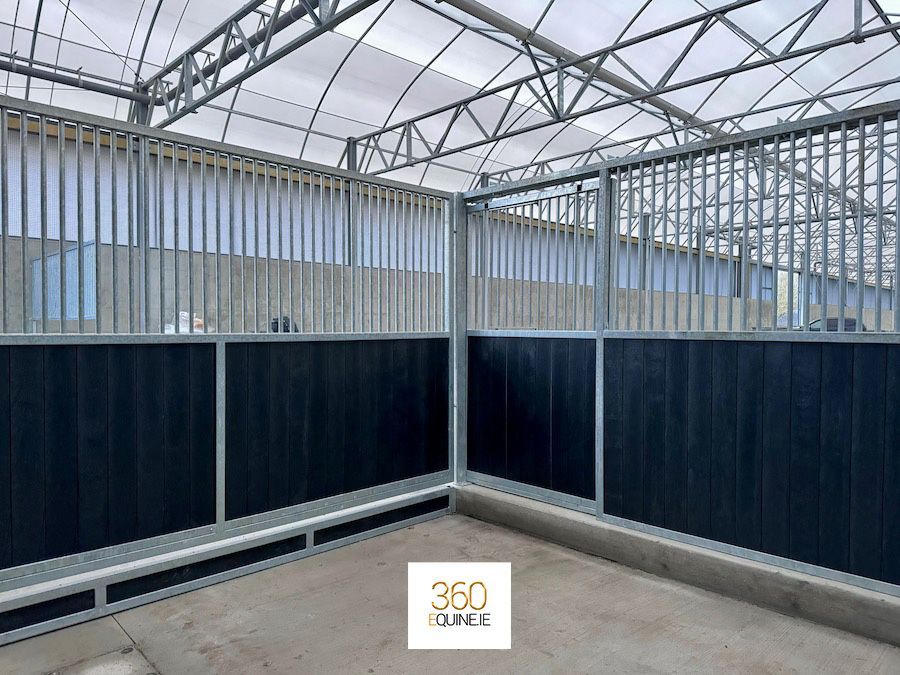

• Slide Out Partitions
• Hinged Partitions
• Open out Fronts
• Reduce significant time cleaning out

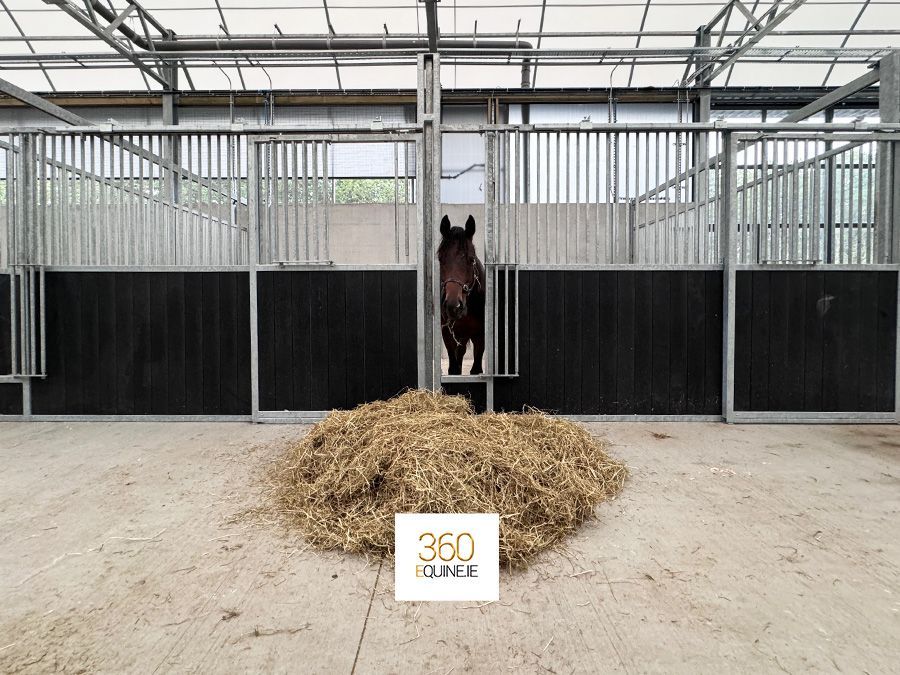

Custom Sizes

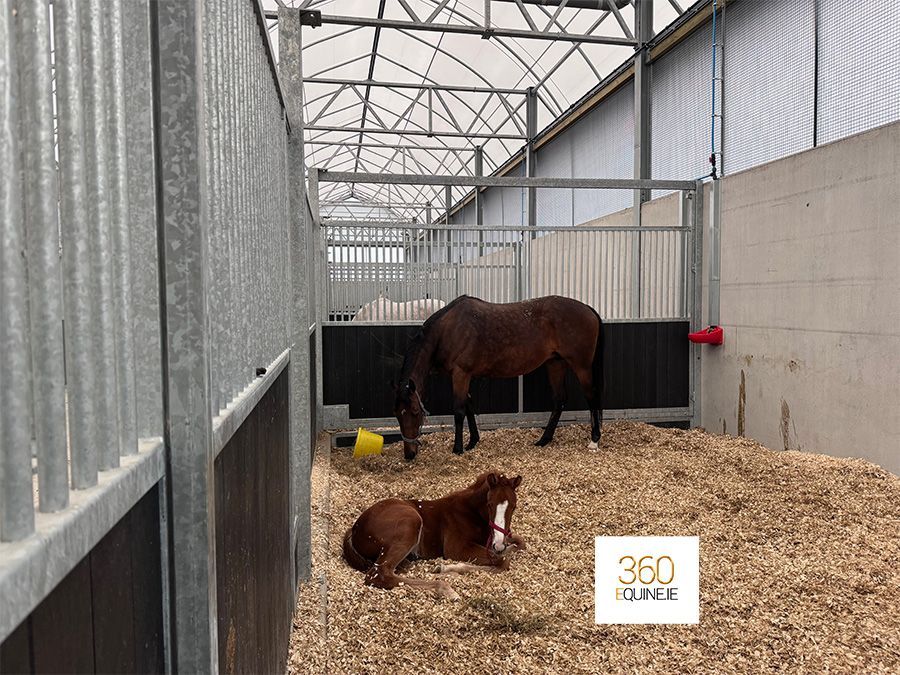

Customised sizes and functionality to accommodate -200mm floors in stables for deep bedding and easy clean out.

Stables sizes range from
12ft x 14ft to 14ft x 14ft

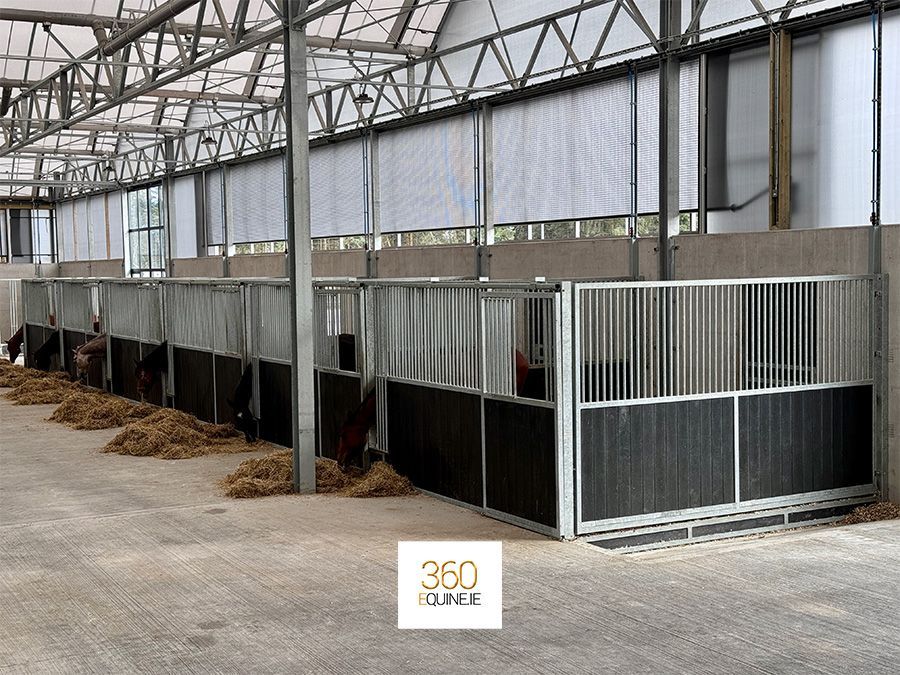

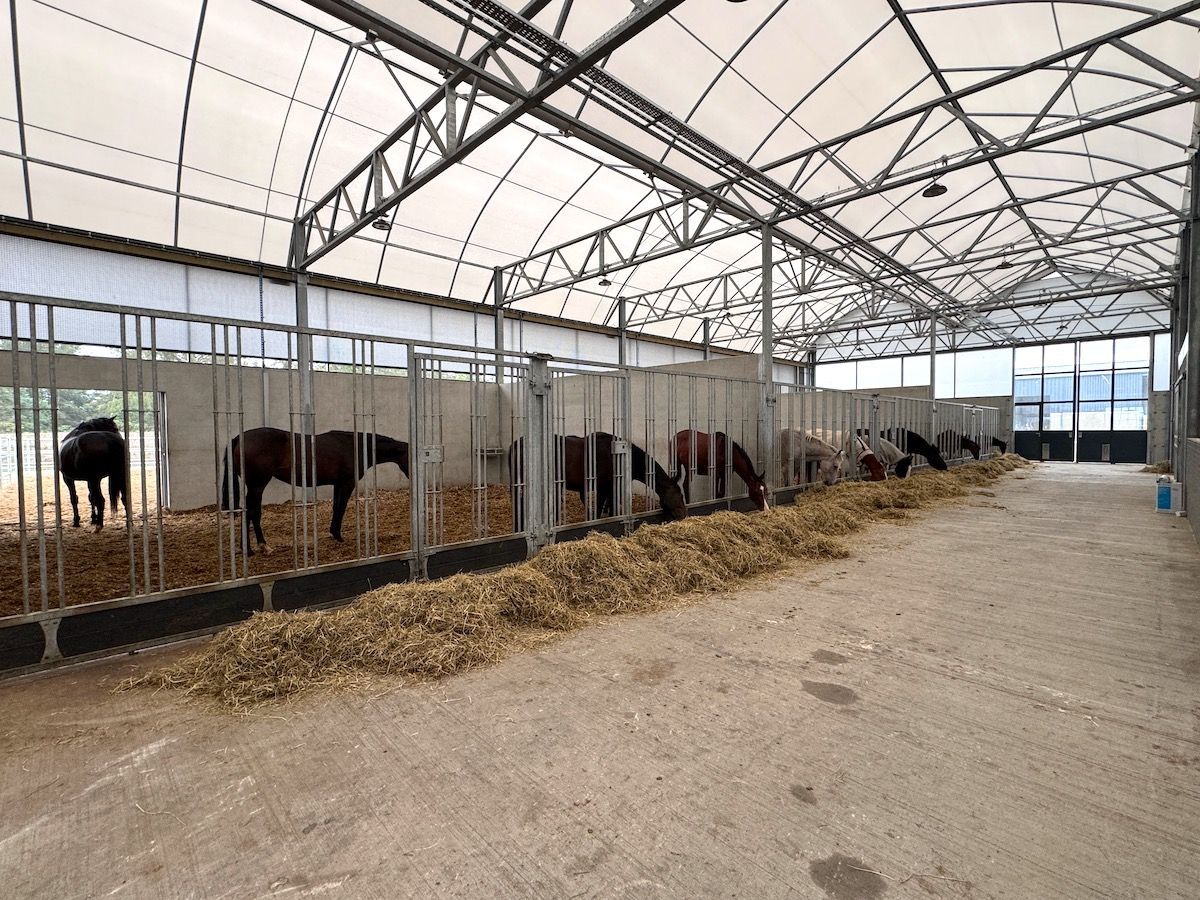

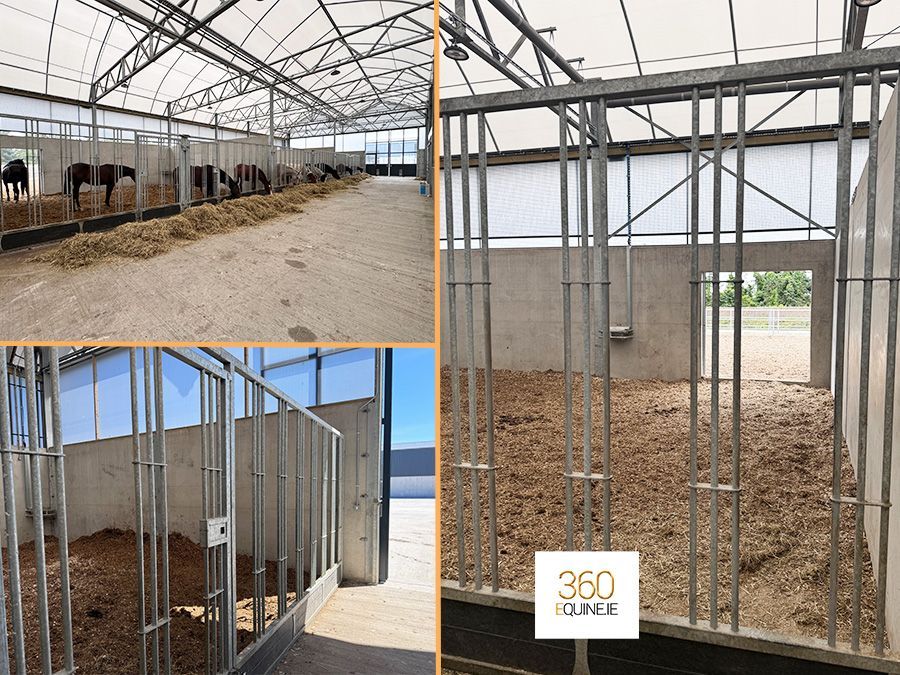

Feed Barriers

Large pens at 8.1m deep x 10m wide
Open out barrier with additional small door access

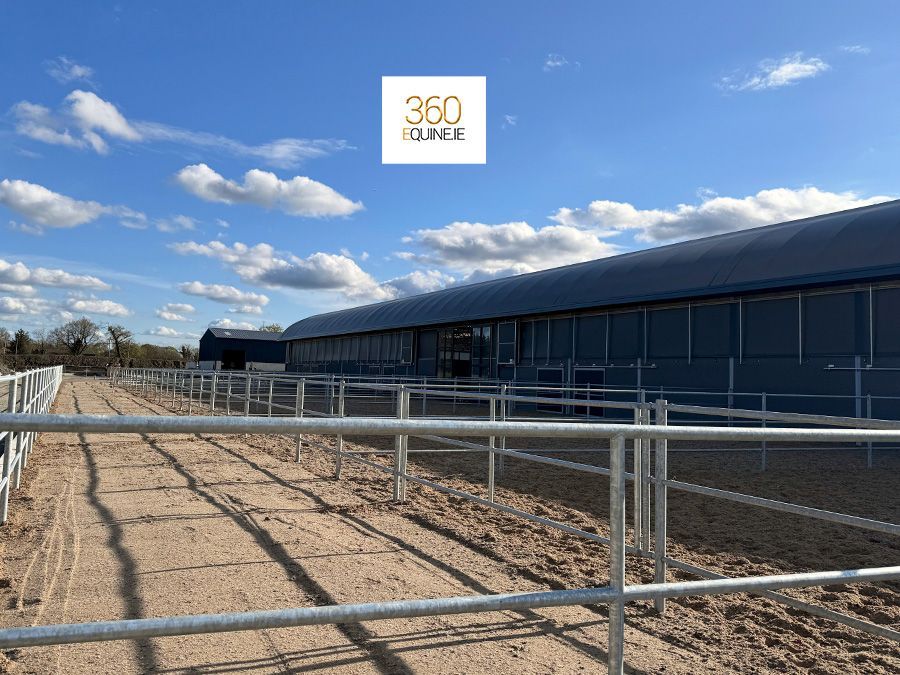

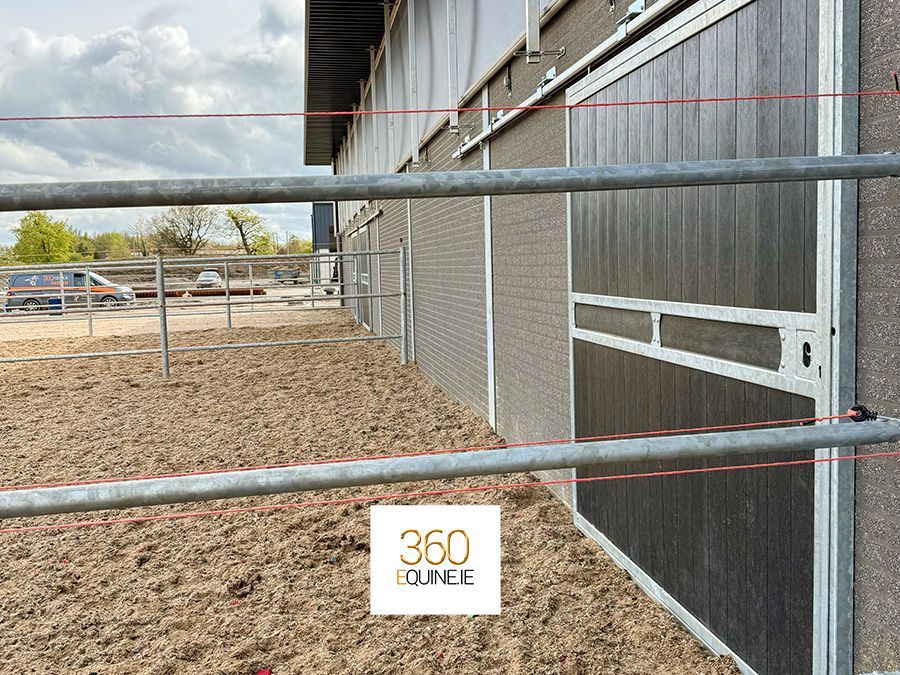

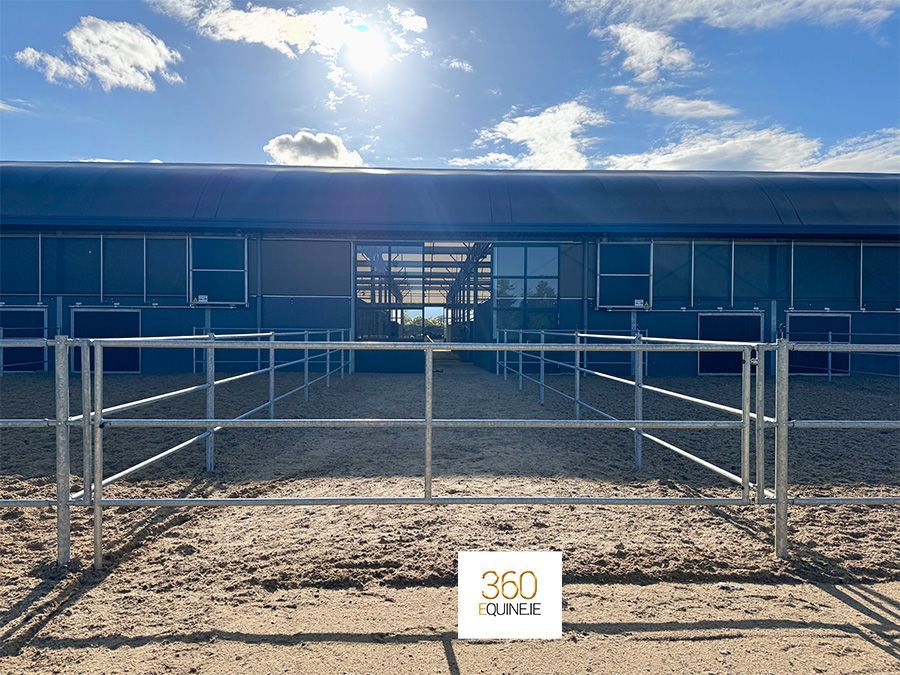

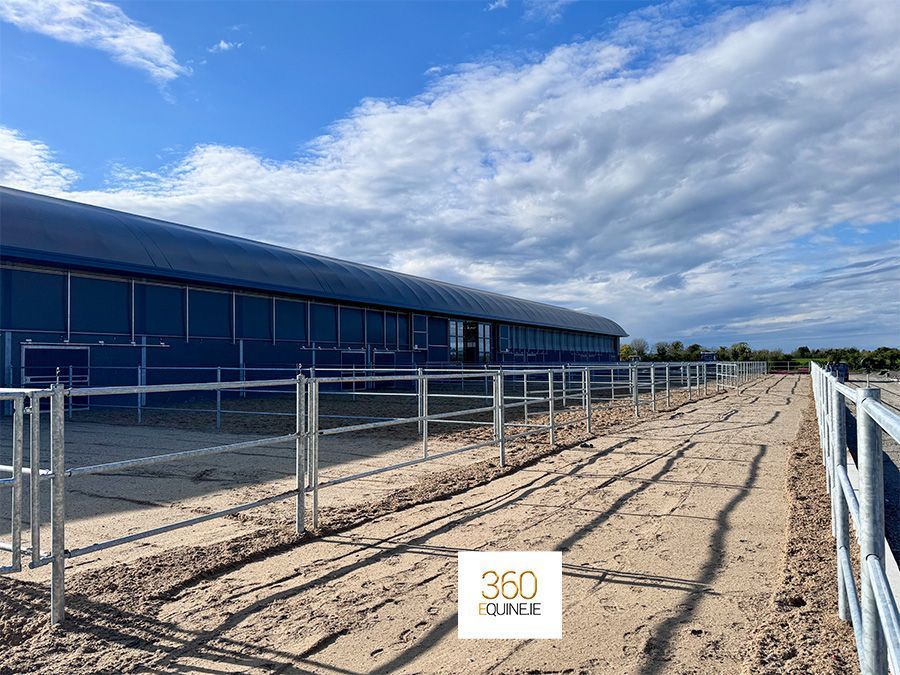

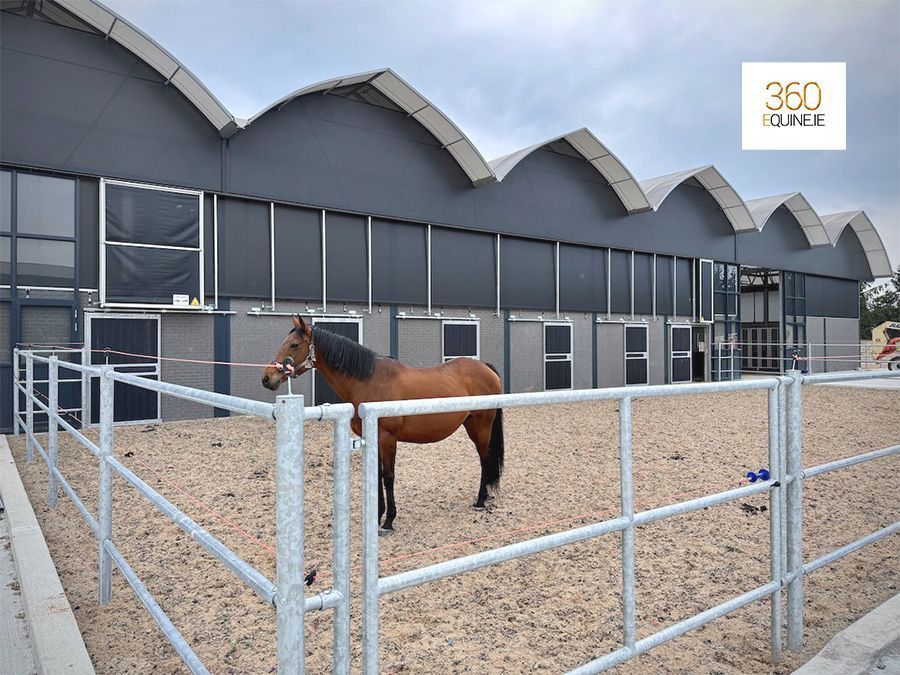

Paddocks: Galvanised post and rail

1.8m above sand. 3 rail with clean safe connectivity. Additional loose run to specific paddocks and pens.
Central paddocks gates to close off run. Electrified centre rail and top rail cable. x 14ft

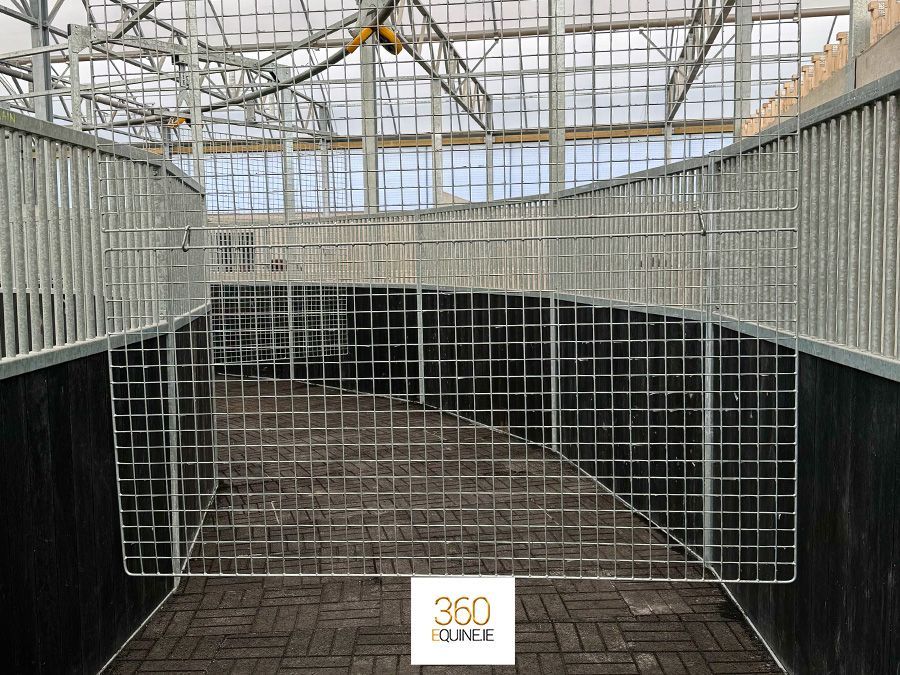

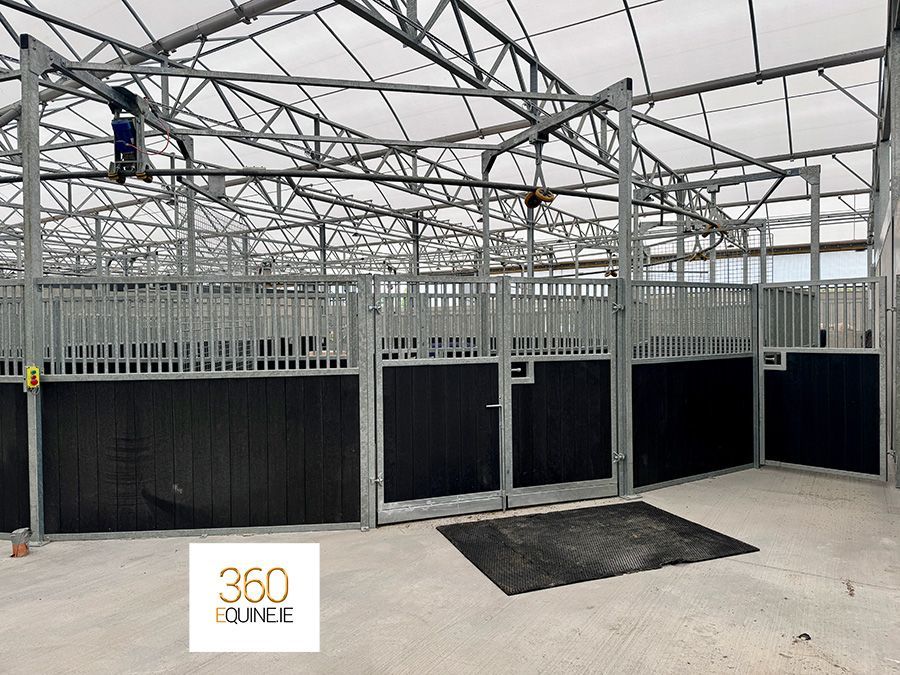

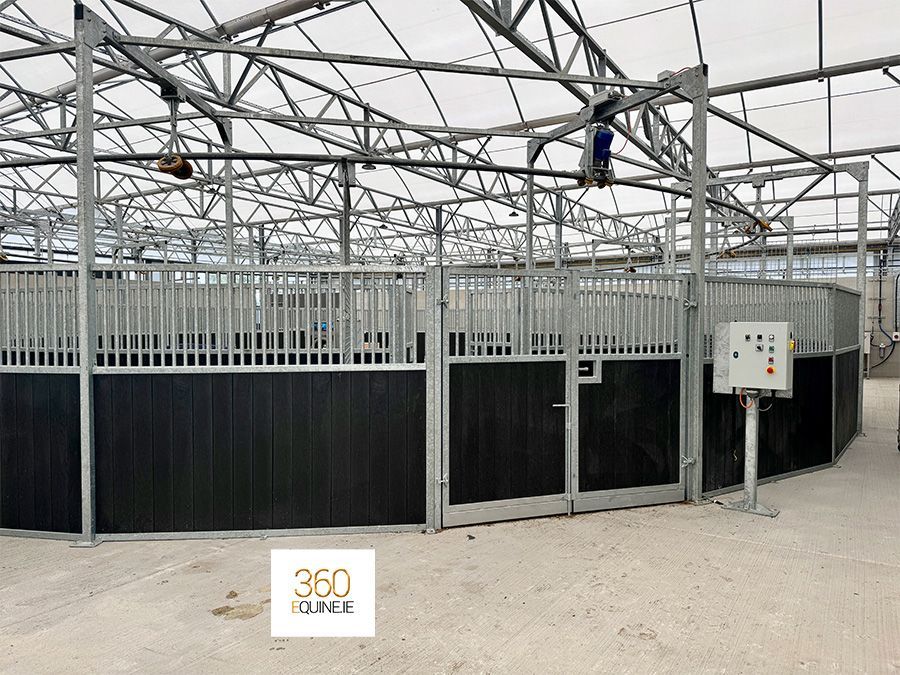

8 Horse Rail Glide Walker

Quiet and low maintenance unit with customised fence with composite and grilles on top at almost 2m height.

8 bays with 7m distance from pusher to pusher. Pushers are also electrified. Variable speed and direction options on controller. 16 amp supply. The inner section can double as a lunging ring or paddock if required. E.g. A 21m diameter unit gives you a 16m lunge pen.

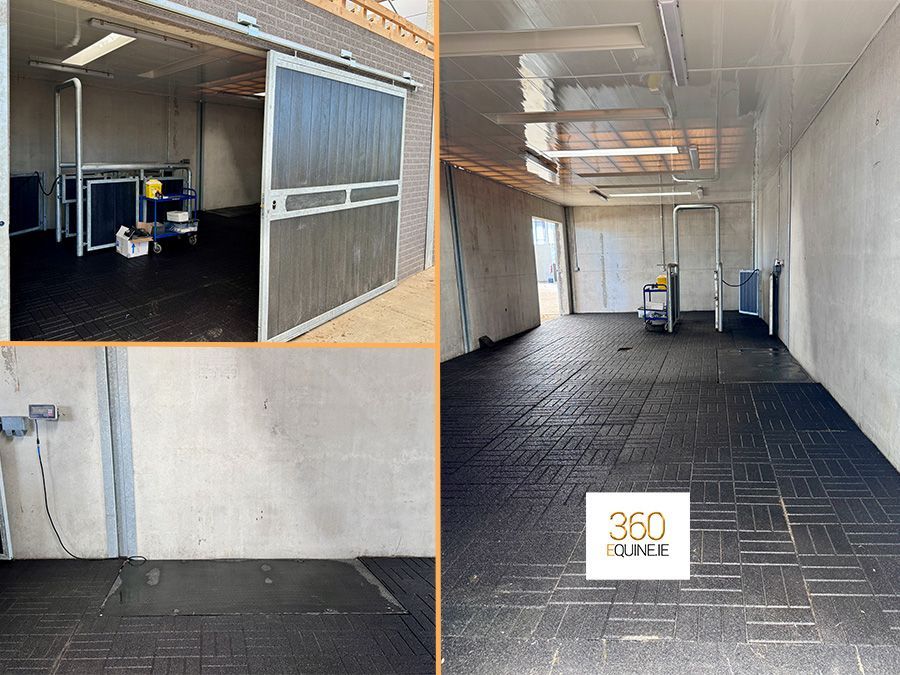

Veterinary Room

55 sqm

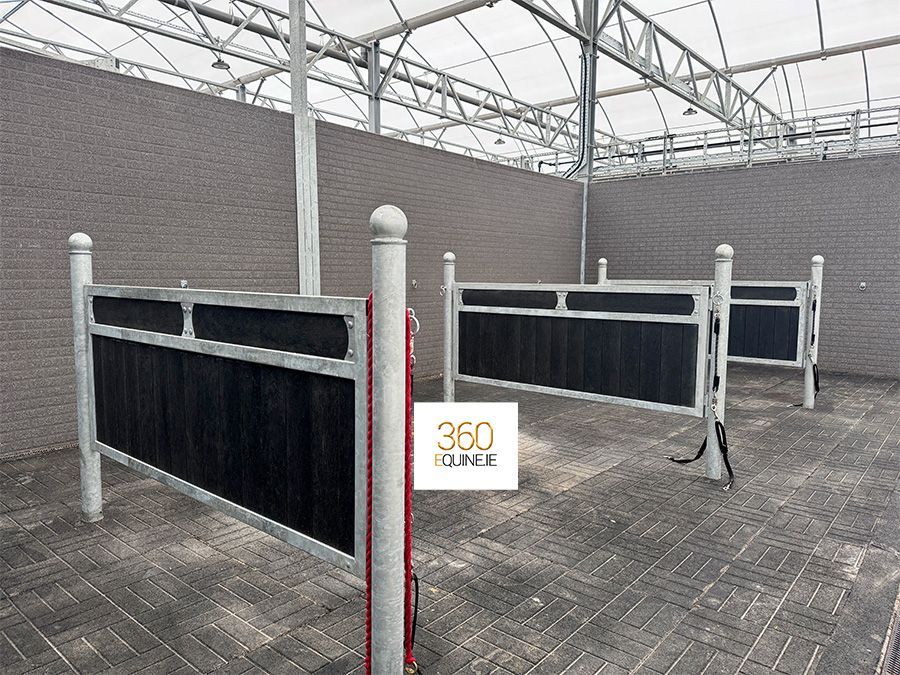

• Multi function Vet stocks
• Weighing Scales
• Large access in-out doors both sides
• 32mm Rubber flooring
